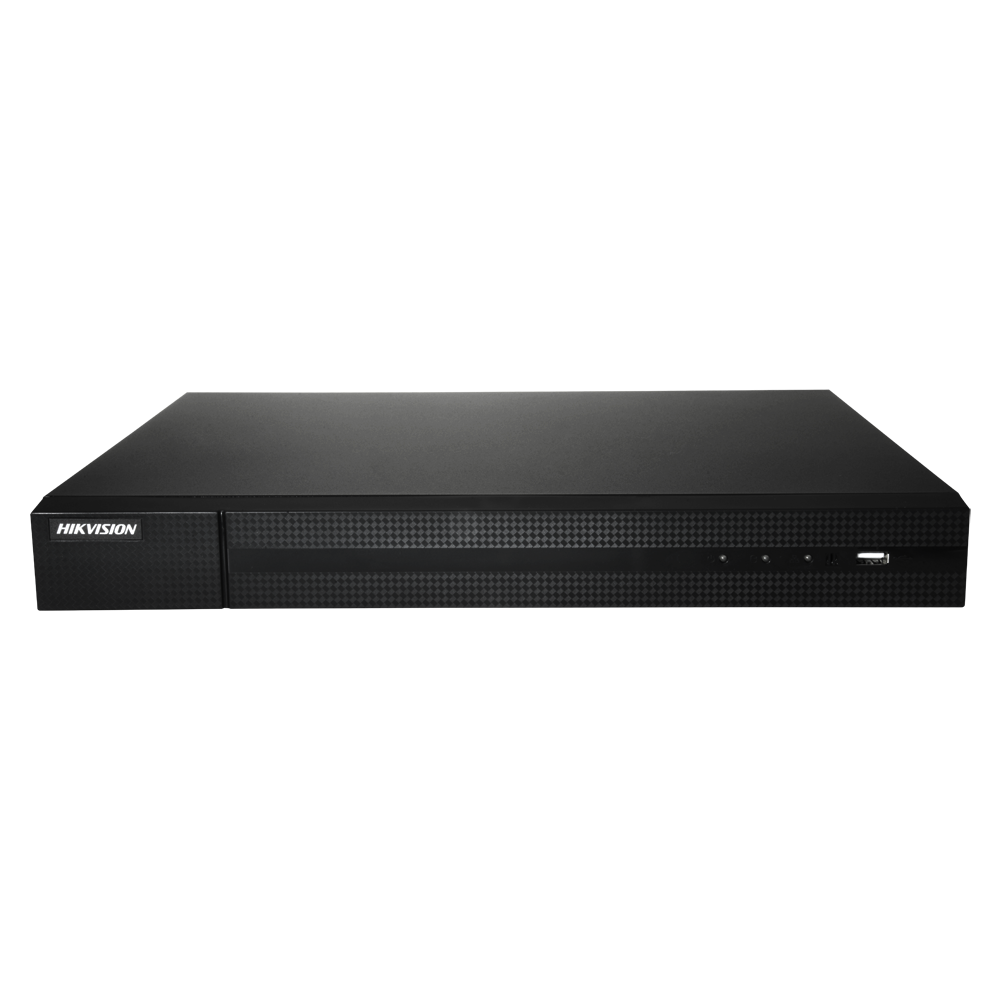

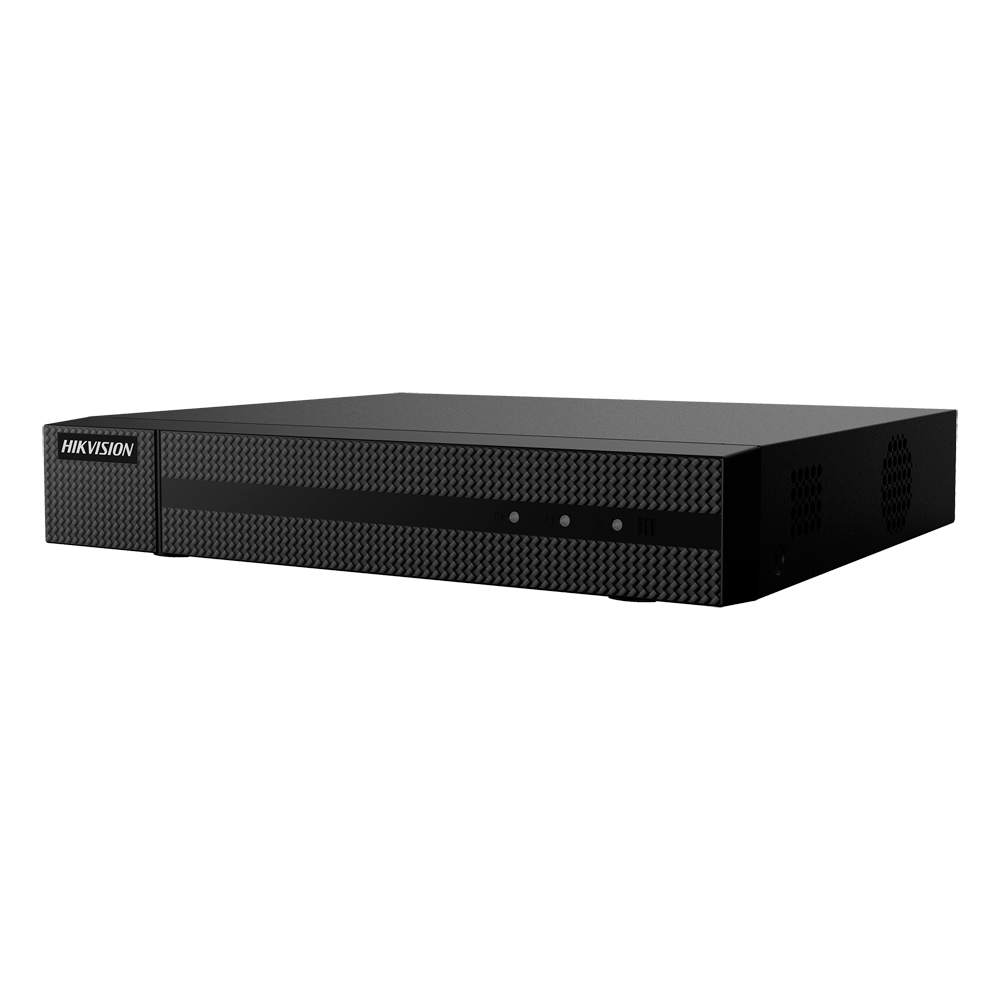

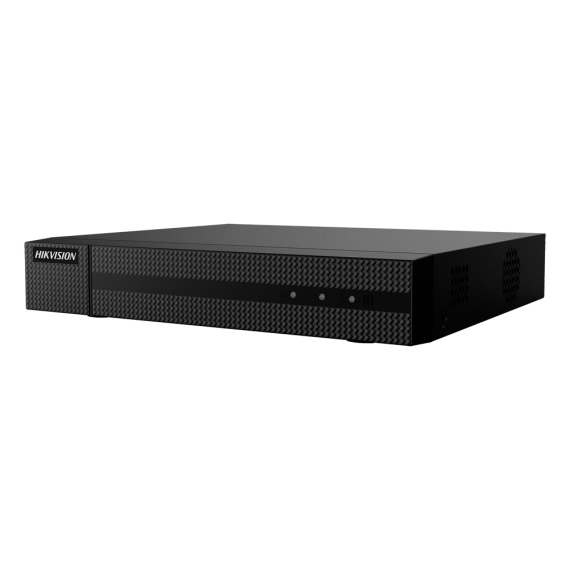

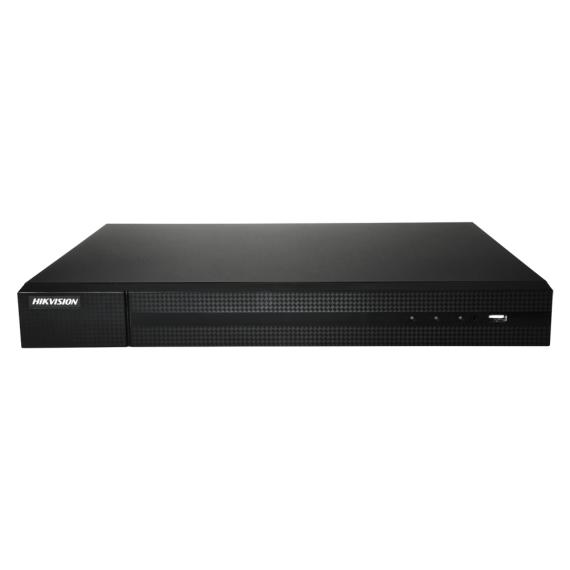

Brand | Hikvision | Range | HiWatch Series |
Inputs for IP cameras | LAN port up to 8 channels |
IP compatible cameras | HIKVISION, ONVIF |
Bidirectional audio | 1 input / 1 RCA output |
Video outputs | 1 HDMI 4K, 1 VGA |
Video compression format | H.265+ / H.265 / H.264+ / H.264 |
Display resolution | 3840x2160, 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768 |
Total bandwidth | 80 Mbps downstream / 80 Mbps upstream |
Main Stream recording | 8MP/6MP/5MP/4MP/3MP/1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF |
Simultaneous multifunction | Pentaplex: Live, Recording, Playback, Backup and Remote Access |
Alarms | No |
Recording method | Manual, programmed, motion detection, alarm |
External Backup | USB memory / HDD USB / CD-RW USB / DVR-RW USB |

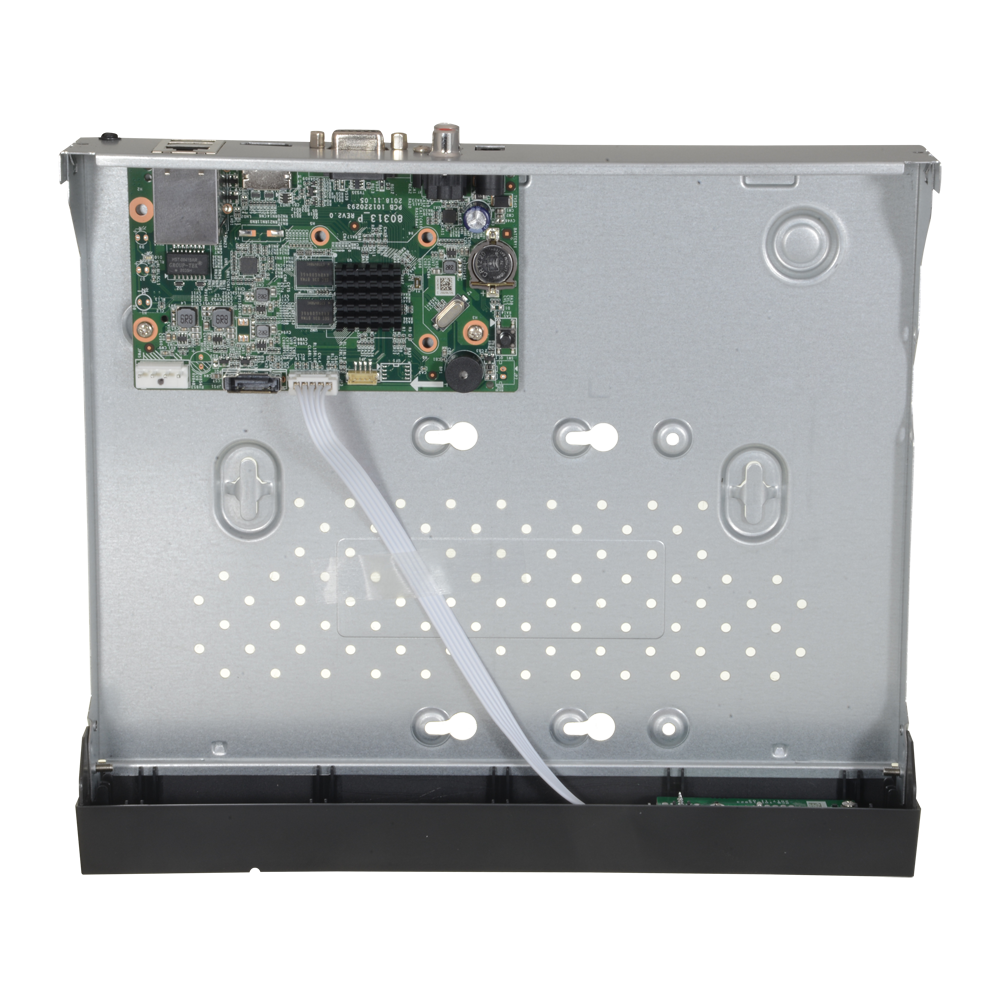

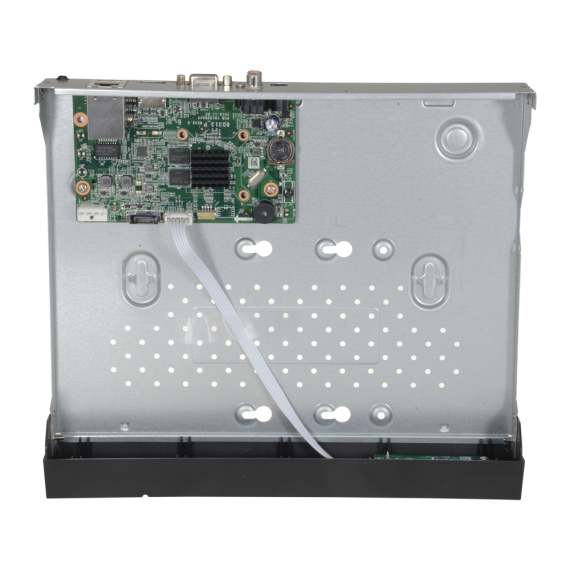

Internal memory | 1 SATA HDD 3.5" of up to 6 TB (not included) |

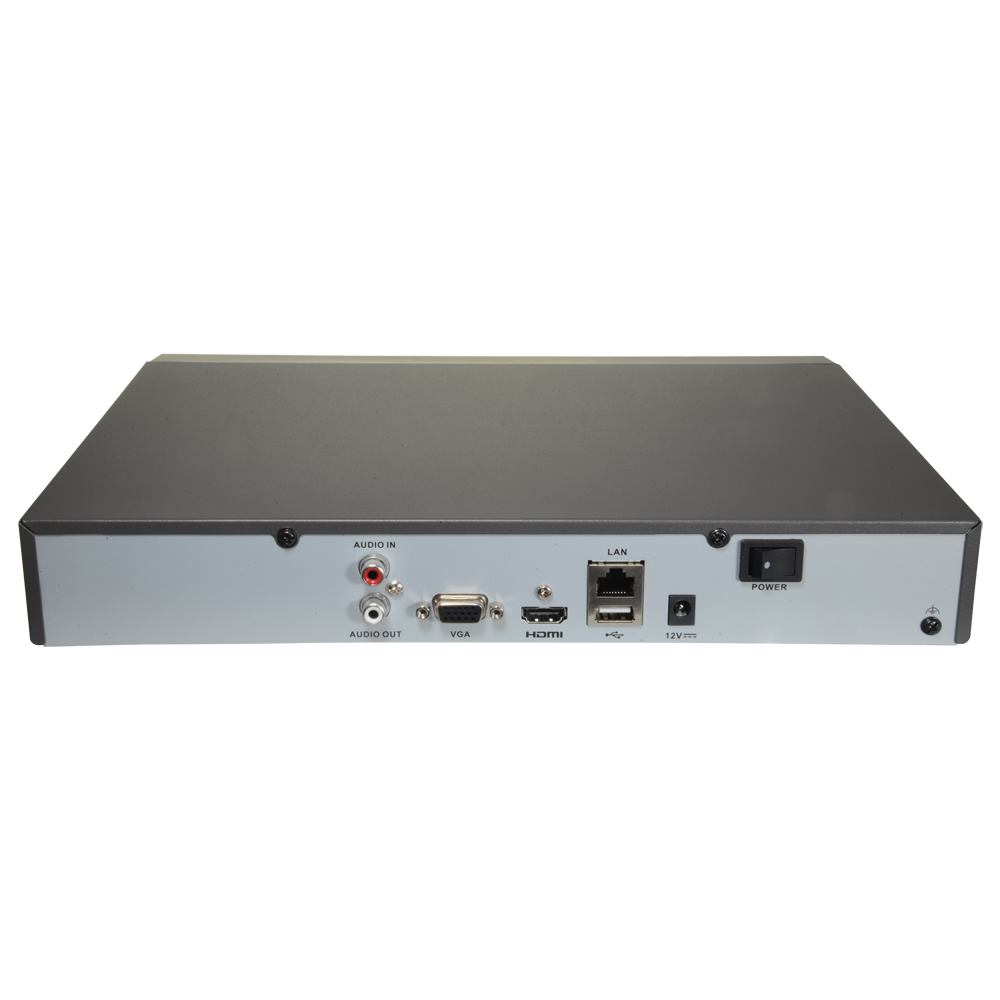

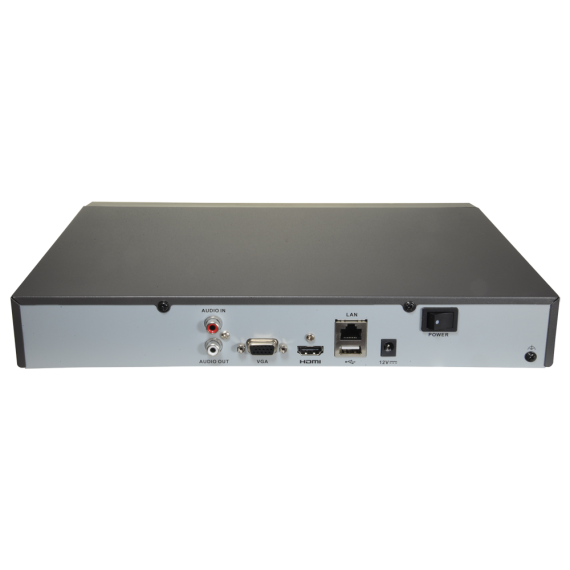

Communication | 2 x USB 2.0 / 1 x RJ45 10/100/1000 (Ethernet) |
Remote access | Web Browser, Smartphone App IVMS 4500 and PC Software IVMS 4200 |
Power | DC 12 V, 50/60 Hz |
Dimensions / Weight | 48 (H) x 315 (W) x 240 (D) mm / 1.0 Kg (without HDD) |
