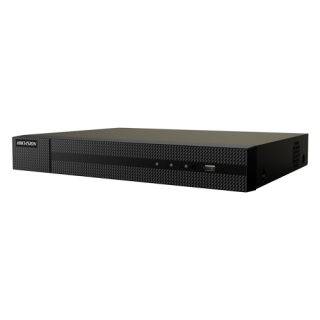

| Brand | Hikvision |
| Range | HiWatch Series |
| Inputs for IP cameras | LAN port up to 80 channels |
| Power over Ethernet | 80 port PoE Switch IEEE802.3af/at (max. 150 W) |
| IP compatible cameras | HIKVISION, ONVIF |
| Bidirectional audio | 1 input / 1 RCA output |
| Video outputs | 1 HDMI 4K, 1 VGA |
| Video compression format | H.265+ / H.265 / H.264+ / H.264 |
| Display resolution | 3840x2160, 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768 |
| Total bandwidth | 80 Mbps downstream / 80 Mbps upstream |
| Main Stream recording | 8MP/6MP/5MP/4MP/3MP/1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF |
| Simultaneous multifunction | Pentaplex: Live, Recording, Playback, Backup and Remote Access |
| Alarms | No |
| Recording method | Manual, programmed, motion detection, alarm |
| External Backup | USB memory / HDD USB / CD-RW USB / DVR-RW USB |
| Internal memory | 2 SATA HDD 3.5" of up to 6 TB (not included) |
| Communication | 2 x USB 2.0 / 1 x RJ45 10/100/1000 (Ethernet) |
| Remote access | Web Browser, Smartphone App IVMS 4500 and PC Software IVMS 4200 |
| Power | AC 100~240 V, 50/60 Hz |
| Dimensions / Weight | 52 (H) x 385 (W) x 315 (D) mm / 2.6 Kg (without HDD) |
