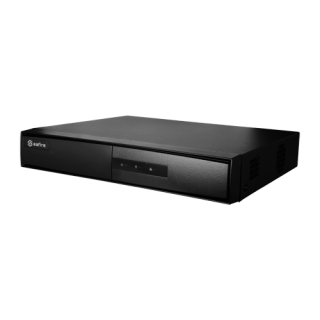

| Brand | SAFIRE |
| Video format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video inputs | 4 Channels BNC (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid configuration | Default: 4 Channels from BNC and 4 (substitution) + 1 (extra) IP Channels (up to 1080P) |
| Video outputs | 1 HDMI Full HD, 1 VGA |
| Audio inputs | 1 Channel RCA |
| Audio outputs | 1 Channel RCA |
| Bidirectional audio | Reusing the audio input/output |
| Video / audio compression | H.264+ / H.264 / G.711u |
| Display resolution | 1920x1080, 1280x1024, 1280x720, 1024x768 |
| BNC input resolution | 1080p / 720p |
| Main Stream coding | 1080p Lite / 720p / VGA / WD1 / 4CIF / CIF (25 FPS) |
| Extra Stream coding | WD1 / 4CIF (12FPS) / CIF (25 FPS) |
| Simultaneous multifunction | Pentaplex: Live, Recording, Playback, Backup and Remote Access |
| Alarms | 4 IN / 1 OUT |
| Video analysis | No |
| Recording method | Manual, programmed, motion detection |
| Backup | USB / Network |
| Internal memory | 1 HDD SATA 3.5" of up to 6TB (not included) |
| Communication | 2 x USB 2.0 (Mouse and backup) / RJ45 (Ethernet) |
| Remote access | Web browser, Smartphone App and Safire Control Center CMS Software |
| Power | DC 12 V / 0.6 A (Consumption without HDD < 8 W) |
| Dimensions / Weight | 45 (H) x 260 (W) x 222 (D) mm / 1 Kg |
