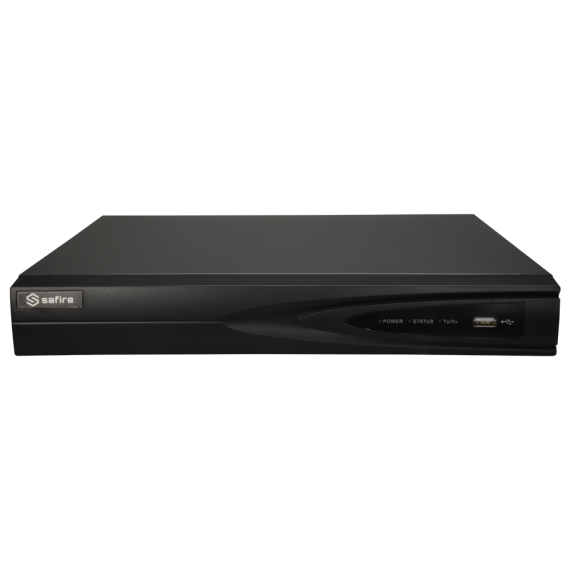

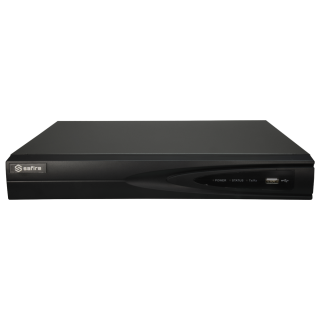

| Brand | Safire |
| Video format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video inputs | 4 Channels BNC (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid configuration | Default: 4 Channels from BNC and 4 (replacement) + 1 (extra) IP Channels (up to 6Mpx) Enhanced IP Mode: Channels from BNC and 4 (replacement) + 2 (extra) IP channels (up to 6Mpx)) Enhanced IP mode limits bandwidth to 4Mbps per IP channel |
| Video outputs | 1 HDMI 1080p, 1 VGA andCVBS |
| Video / audio compression | H.265+/H.265/H.264+/H.264 |
| Display resolution | 1920x1080, 1280x1024, 1280x720 |
| Total bandwidth | 64 Kbps |
| Input resolution | 4 Mpx, 3 Mpx, 1080p, 720p, WD1, 4CIF, D1, CIF |
| Main Stream coding | 4Mpx Lite /3 Mpx / 1080p (1~15 FPS); 720p / WD1 / 4CIF / VGA / CIF (1~25 FPS) *3 Mpx is only available for the CH1 |
| Extra Stream coding | D1 / 4CIF (1~15 FPS); CIF (25 FPS) |
| Simultaneous multifunction | Pentaplex: Live, Recording, Playback, Backup and Remote Access |
| Audio | 4ch on Coaxial cable (HDTVI), 1 input / 1 output RCA |
| Bidirectional audio | Using Audio Inputs and RCA Output |
| Alarms IN/OUT | 4 / 1 |
| Advanced features | Facial recognition: Up to 1 analog channel for face comparison Truesense: Up to 2 channels (False alarm filter capable of classifying objects between humans and vehicles) Note: TrueSense and Facial Recognition cannot be enabled at the same time. |
| Recording method | Manual, programmed, motion detection, alarm |
| Backup | USB/ Network/ Cloud (Microsoft One Drive, Dropbox) |
| Internal memory | 1 SATA HDD 3.5" of up to 10 TB (not included) |

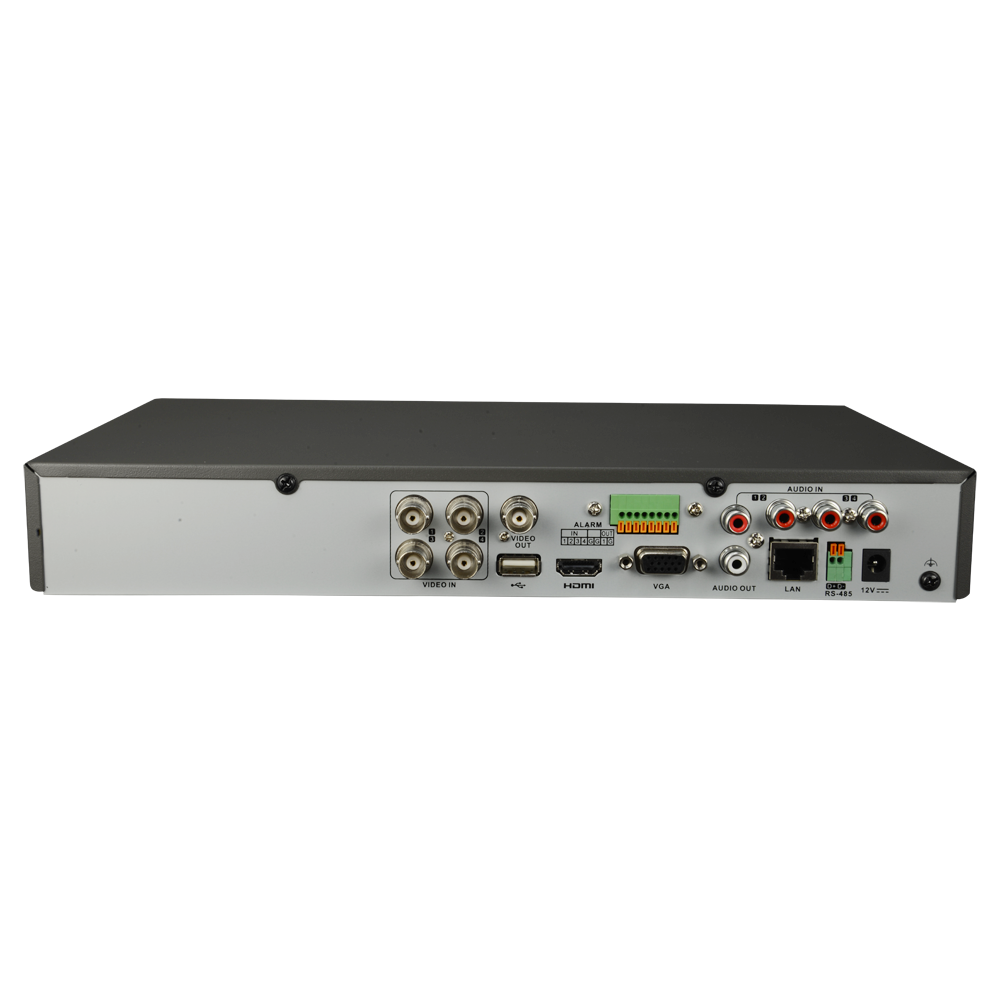

| Communication | RS485 (PTZ) / 2 x USB 2.0 (Mouse and backup) / 1xRJ45 10/100M (Ethernet) |
| Remote access | Web browser, Smartphone App and Safire Control Center CMS Software |
| Power | DC 12V / 1.5A |
| Dimensions / Weight | 45 (H) x 242 (W) x 315 (D) mm / 1.16 Kg |
