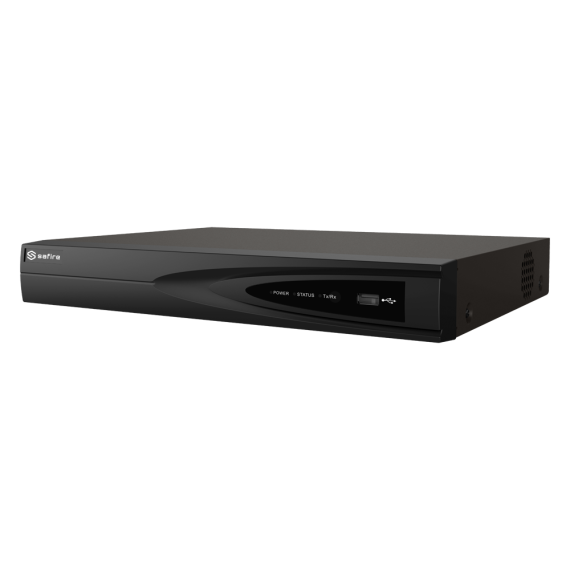

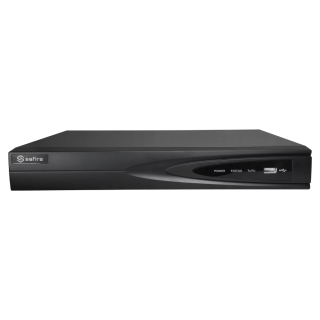

| Brand | SAFIRE |
| Video format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video inputs | 16 Channels BNC, (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid configuration | Default: 16 Channels from BNC and 16 (replacement) + 4 (extra) IP Channels (up to 8Mpx) Enhanced IP Mode: 16 Channels from BNC and 16 (replacement) + 16 (extra) IP Channels (up to 8Mpx) Enhanced IP mode limits bandwidth to 4Mbps per IP channel |
| Input bandwidth | 64 Mbps |
| Video outputs | 1 HDMI 4K, 1 VGA, 1 BNC (CVBS) Independent * HDMI and VGA are simultaneous |
| Audio | 8ch on Coaxial cable (HDTVI), 1 input / 1 output RCA |
| Bidirectional audio | Using Audio Inputs and RCA Output |
| Video / audio compression | H.265Pro+ / H.265Pro / H.264+ / H.264 / G.711u |
| Display resolution | HDMI: 4K (3840x2160), 2K (2560x1440), 1920x1080, 1280x1024, 1280x720, 1024x768 VGA: 1920x1080, 1280x1024, 1280x720, 1024x768 |
| BNC input resolution | 8Mpx / 5Mpx / 4Mpx / 3Mpx / 1080p / 720p |
| Main Stream coding | 8 Mpx (8 FPS), 3K / 5Mpx (12 FPS), 1080p / 720p / VGA / WD1 / 4CIF / CIF (25 FPS) |
| Extra Stream coding | WD1 / 4CIF (12FPS) / CIF (25 FPS) |
| Simultaneous multifunction | Pentaplex: Live, Recording, Playback, Backup and Remote Access |
| Alarms IN / OUT | 16 / 4 |
| Advanced features | Motion detection 2.0: Advanced motion detection of humans and vehicles on the scene. Fast target search capability. Truesense: Up to 4 channels (False alarm filter capable of classifying objects between humans and vehicles) |
| Recording method | Manual, programmed, motion detection, alarm |
| Backup | USB / Network / Cloud (Microsoft One Drive, Dropbox) |

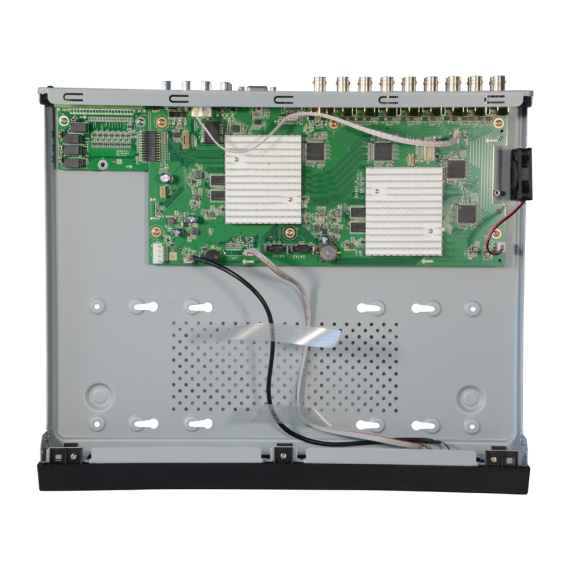

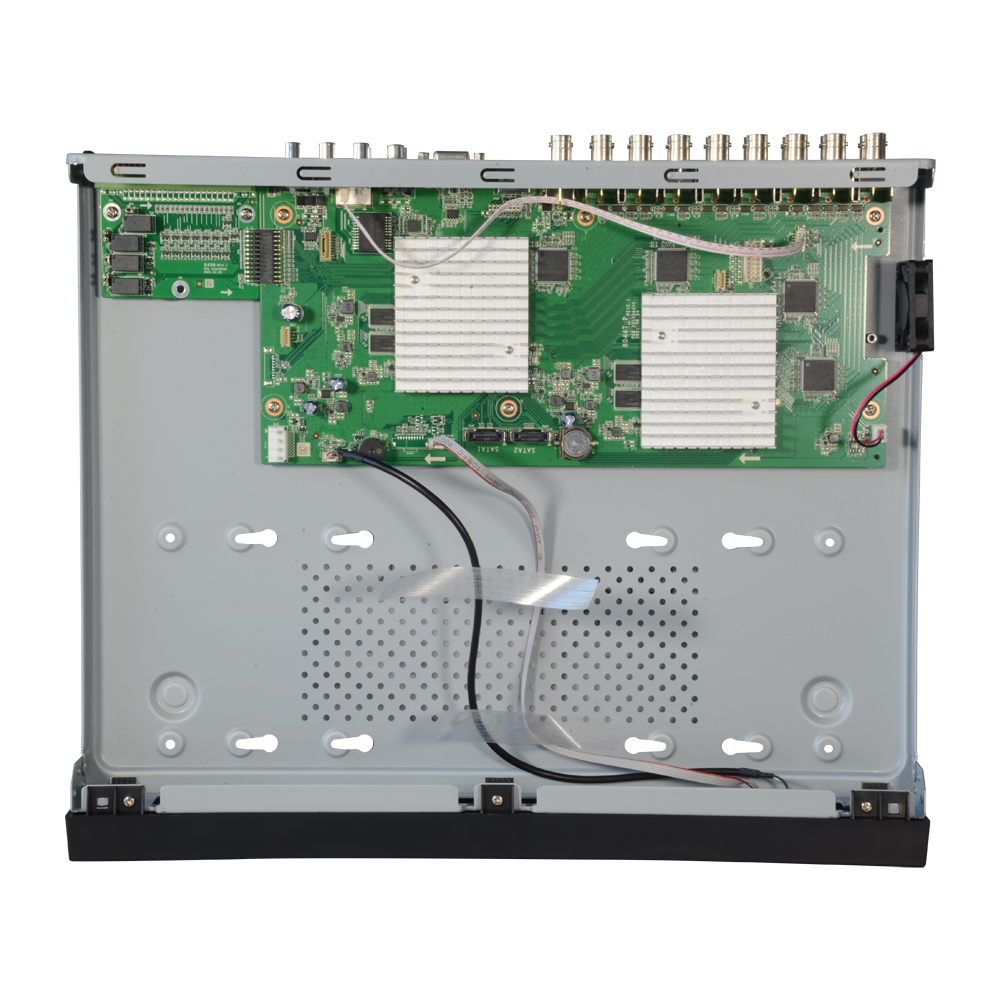

| Internal memory | 2 HDD SATA 3.5" of up to 10TB (not included) |

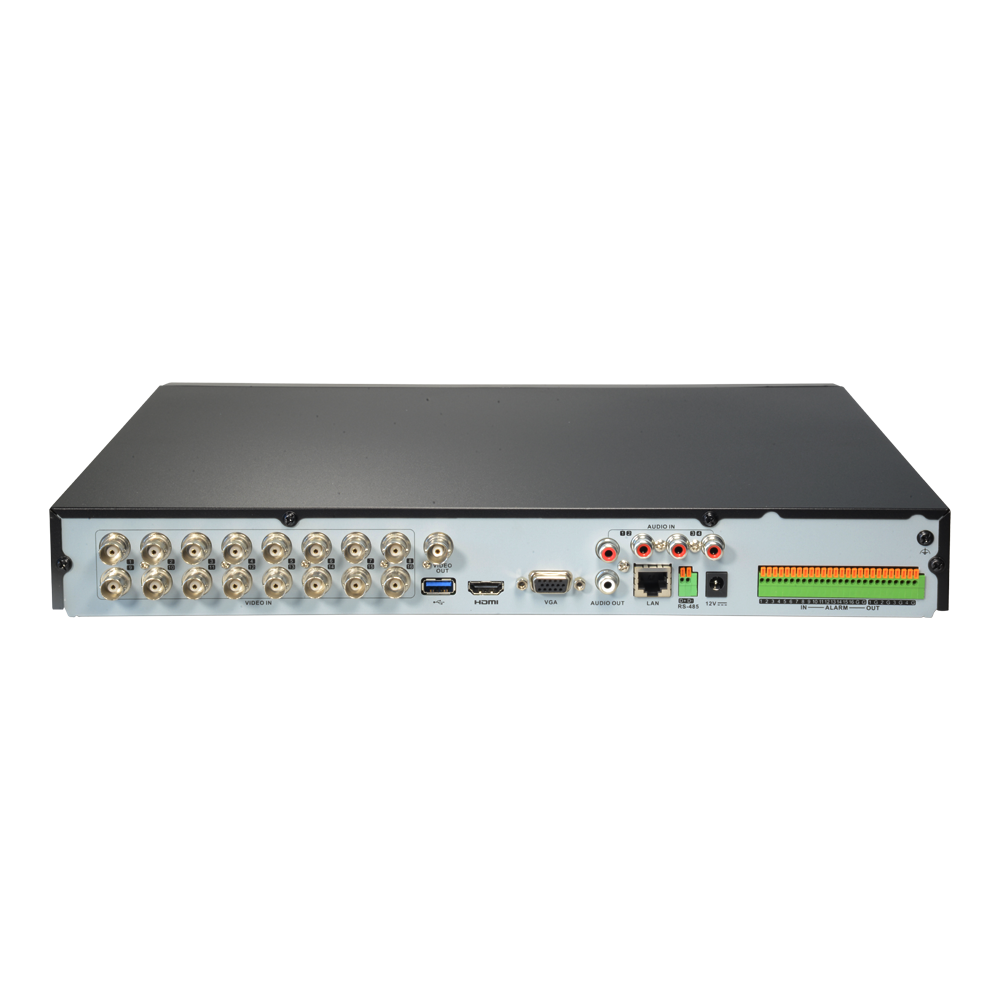

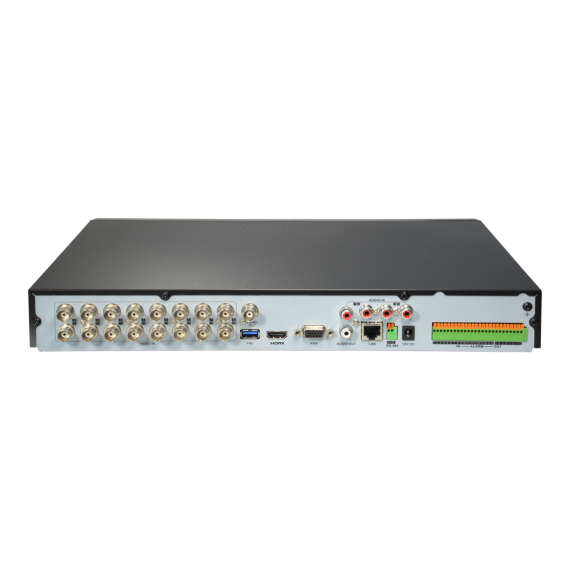

| Communication | RS485 (PTZ) / 2 x USB 2.0 (Mouse and backup) / RJ45 (Ethernet) 10/100/1000M |
| Remote access | Web browser, Smartphone App and Safire Control Center CMS Software |
| Power | DC 12 V / 5 A (HDD Consumption < 19 W) |
| Dimensions / Weight | 48 (H) x 380 (W) x 320 (D) mm / 2.1 Kg |
