| Brand | SAFIRE |
| Video format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video inputs | 32 Channels BNC, (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid configuration | Default: 32 Channels from BNC and 16 (replacement) + 32 (extra) IP Channels (up to 8Mpx) |
| Total bandwidth | 256 Mbps |
| Video outputs | 1 HDMI 4K, 1 HDMI 1080p, 1 VGA, |
| Audio inputs | 4 Channel RCA |
| Audio outputs | 2 Channel RCA |
| Bidirectional audio | 1 Independent RCA channel |
| Video / audio compression | H.265Pro+ / H.265Pro / H.264+ / H.264 / G.711u |
| Display resolution | 3840x2160, 2560x1440, 1920x1080, 1280x1024, 1280x720, 1024x768 |
| BNC input resolution | 8 Mpx / 5Mpx 4Mpx / / 3Mpx/ 1080p 720p |
| Main Stream coding | TVI: 8 MP, 3K (20FPS) / 5 MP, 4 MP, 3 MP, 1080p (25FPS) / 1080p (30FPS) / 720p (25FPS) / 720p (30FPS) / 720p (50FPS) / 720p (60FPS) AHD: 5 MP, 4 MP, 720p (25FPS) / 720p (30FPS) / 1080p (25FPS) / 1080p (30FPS) CVI: 4 MP, 720p (25FPS) / 720p (30FPS) / 1080p (25FPS) / 1080p (30FPS) |
| Extra Stream coding | WD1, 4CIF, CIF (25FPS) |
| Simultaneous multifunction | Pentaplex: Live, Recording, Playback, Backup and Remote Access |
| Alarms | 16 inputs / 4 relay |
| Video analysis | All channels support VCA, 2 CH sudden change of scene Line crossing | Area intrusion | Audio exception |
| Recording method | Manual, programmed, motion detection, alarm |
| Backup | USB / Network / Cloud (Microsoft One Drive, Dropbox) |
| RAID | 0, 1, 5, 6, 10 |
| Internal memory | 4 HDD SATA 3.5" of up to 10TB (not included) and 1 HDD eSATA. |

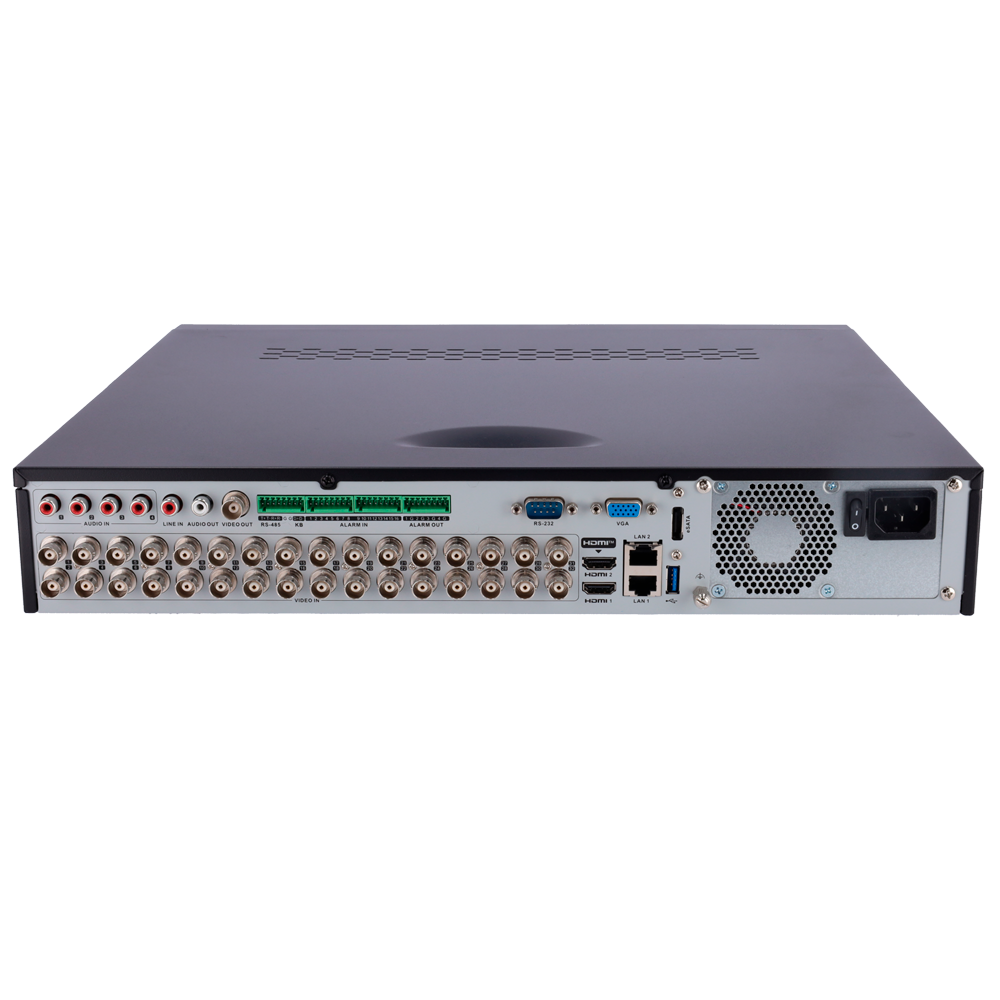

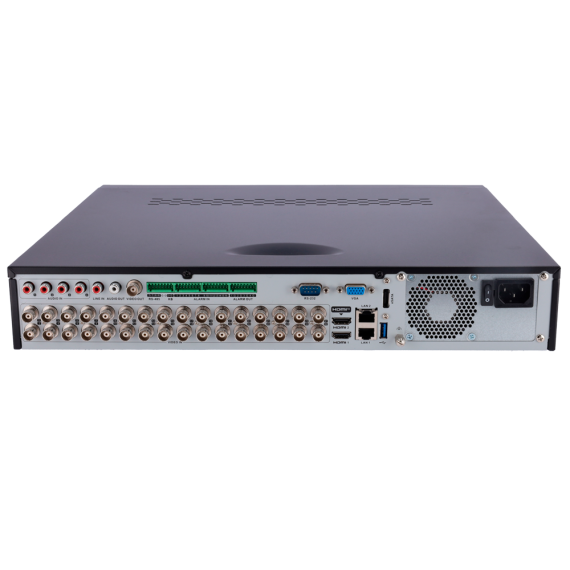

| Communication | RS232 / RS485 (PTZ) / 1 x USB 3.0 / 2 x USB 2.0 (Mouse and backup) / 2x RJ45 10/100/1000M (Ethernet) |
| Remote access | Web browser, Smartphone App and Safire Control Center CMS Software |
| Power | 100 to 240 VAC, ≤ 55 W (without hard disk) |
| Dimensions / Weight | 445 × 400 × 71 mm (17.5 × 15.7 × 2.8 inch) |
| Weight | ≤ 7 kg |
