Brand | X-Security | Video format | HDCVI / analogue CVBS / IP |
Video inputs | 4 BNC, HDCVI or CVBS interchangeably channels |
Hybrid configuration | Up to 6 IP Channels (8Mpx), replacing all the BNC channels |
Bandwidth | 24Mbps |
Video outputs | 1 HDMI 4K, 1 VGA |
Audio inputs | 1 Channel RCA |
Audio outputs | 1 Channel RCA |
Bidirectional audio | Reusing input / output audio |
Video / audio compression | H.264+ / H.264 / G.711 |
Display resolution | 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768 |
Recording resolution | 4K (3840 x 2160), 2688x1520 (4Mpx), 1920x1080(1080p), 960x1080(1080N), 1280x720(720p), 960x576(960H), 704x576(D1) |
Main Stream coding | 4K (1~15 FPS), 4Mpx/1080p/720p/960H/D1/HD1//BCIF/CIF/QCIF (1~25 FPS) |
Extra Stream coding | D1/CIF/QCIF (1~25 FPS) |
Simultaneous multifunction | Pentaplex: Live, Recording, Playback, Backup and Remote Access |
Alarms | No |
Recording method | Manual, programmed, motion detection |
Backup | USB / Network devices |

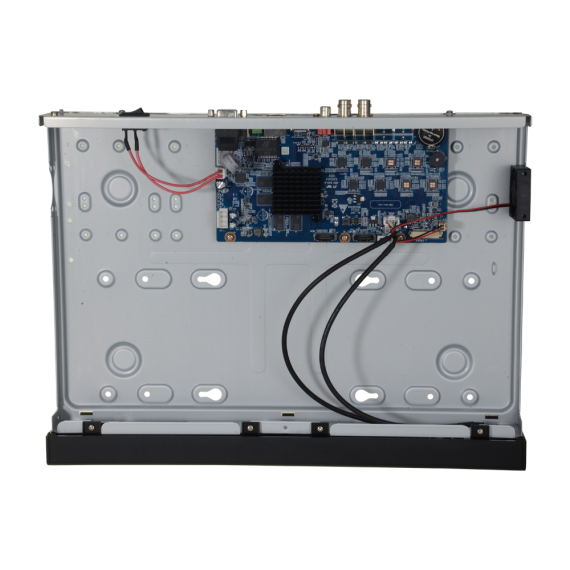

Internal memory | 2 HDD SATA 3.5"de up to 8 TB (not included) |

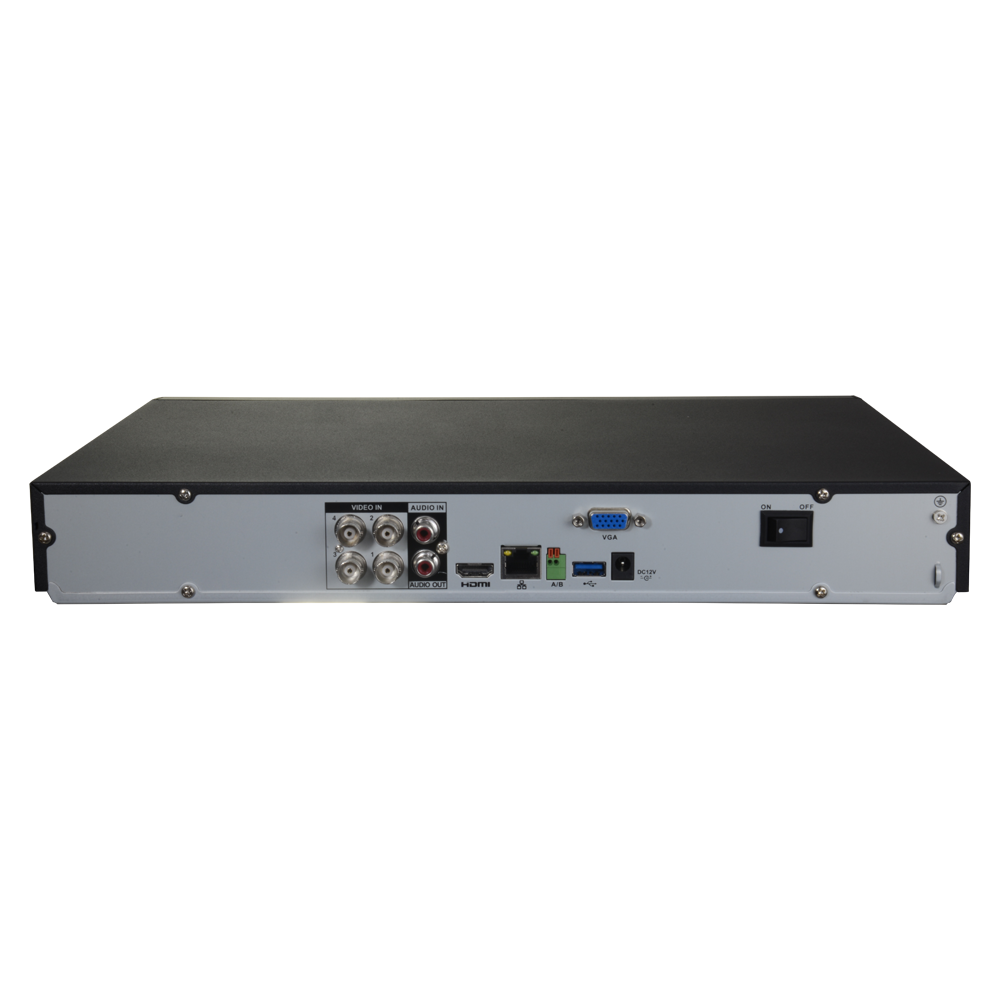

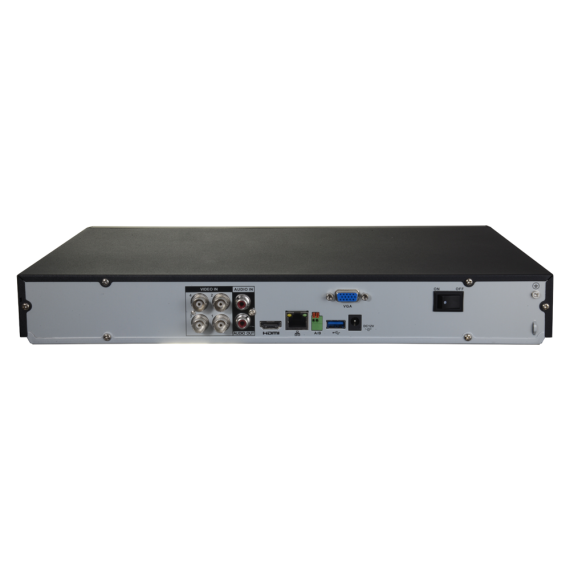

Communication | RS485 (PTZ) / 2 x USB (Mouse and backup) / RJ45 (Ethernet) |
Remote access | Browser (ActiveX), mobile app software PSS |
Power | DC 12 V / 4.0 A |
Dimensions / Weight | 53 (H) x 375 (W) x 287 (D) mm / 2.35 Kg |
