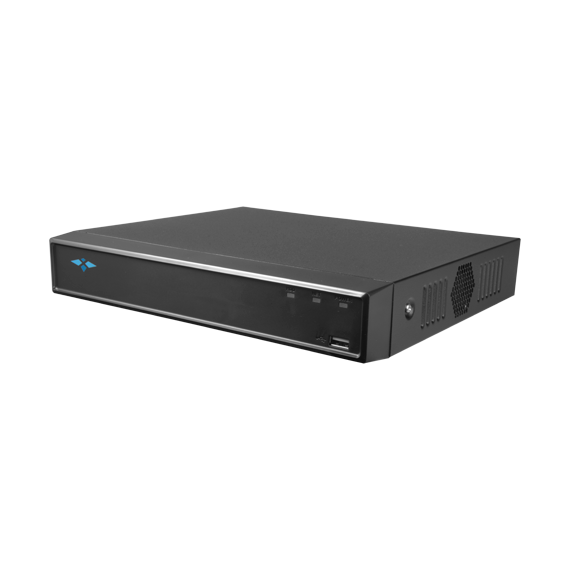

| Brand | X-SECURITY |
| Inputs for IP cameras | 16 channels |
| Video outputs | 1 HDMI 4K, 1 VGA |
| Bidirectional audio | 1 RCA input, 1 RCA output |
| Video compression format | H.265+/H.265/H.264+/H.264/MJPEG |
| Video analysis | IVS: Line Crossing | Area Intrusion | Face Detection | Face Detection |
| Facial recognition | 1 live analogue face comparison channel |
| Intelligent motion detection | Up to 2 channels capable of classifying targets amongst humans and vehicles |
| Total bandwidth | 80 Mbps |
| Recording resolution | 12Mp, 8Mp (on 1 channel), 6Mp, 5Mp, 4Mp, 3Mp, 1080P (on 4 channel), 720P, D1... |
| Simultaneous multifunction | Pentaplex: Live, Recording, Playback, Backup and Remote Access |
| Alarms | 4 IN / 2 Relay |
| Recording method | Manual, programmed, motion detection |
| Backup | USB (Memory, HDD, CD-RW, DVR-RW) / Network / SATA internal interface |
| Internal memory | 2 SATA HDD 3.5" of up to 8 TB (not included) |
| Communication | 2x USB 2.0 (Mouse and backup) /1 RJ45 10/100M (Ethernet) |
| Remote access | Web browser (ActiveX), mobile phone application or PSS software |
| Power | DC 12 V / 1.5 A / PoE IEEE802.3af |
| Dimensions | 1U, 48 (H) x 260 (W) x 225 (D) mm / 0.8 Kg (without HDD) |
