| Brand | X-SECURITY |
| Inputs for IP cameras | LAN port up to 32 channels |
| Video outputs | 1 HDMI 4K, 1 VGA |
| Bidirectional audio | 1 input, 1 output, RCA |
| Video compression format | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG |
| Decoding capacity | AI Disabled: 2 channels 16 MP@30 fps; 2 channels 12 MP@30 fps; 4 channels 8 MP@30 fps; 6 channels 5 MP@30 fps; 8 channels 4 MP@30 fps; 16 channels 1080p@30 fps AI Enabled: 1 channel 16 MP@30 fps ; 2 channels 12 MP@30 fps; 3 channels 8 MP@30 fps; 4 channels 5 MP@30 fps; 6 channels 4 MP@30 fps; FPS 12p@1080 of 30 channels |
| Total bandwidth | AI deactivated: 256 Incoming Mbps, 256 Recording Mbps and 256 Outgoing Mbps AI enabled: 180 Incoming Mbps, 180 Recording Mbps and 180 Outgoing Mbps |
| Recording resolution | 16 MP, 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, 960p, 720p, D1, CIF |
| Simultaneous multifunction | Pentaplex: Live, Recording, Playback, Backup and Remote Access |
| Alarms | 4 Inputs / 2 Relay NO/NC |
| SMD Plus | SMD Plus per recorder up to 4 channels: Secondary filtering for human and motorized vehicles, reducing false alarms caused by leaves, rain and changing lighting conditions. SMD Plus per camera up to 8 channels. |
| Perimeter protection | Per recorder up to 2 channels, 10 IVS rules for each channel. By camera up to 8 channels. |
| Face detection | Per recorder 1 channel (up to 12 facial images per channel) By camera up to 8 channels. Gender; Age group; Glasses; Expressions; Mask; Beard; |
| Facial recognition | Up to 10 facial databases with 200,00 images, with a total capacity of 2.5 G. Name, gender, date of birth, address, credential type, credential number, countries and regions, and state can be added to each face image. |
| AI face recognition performance per camera (number of channels) | 8 channels |
| AI face recognition performance per recorder (number of channels) | FD of 8 channels (per camera) + FR (per recorder), image stream: 12 FD face/s images of 1 channel (per recorder) + FR (per recorder), video stream: 12 facial images/s |

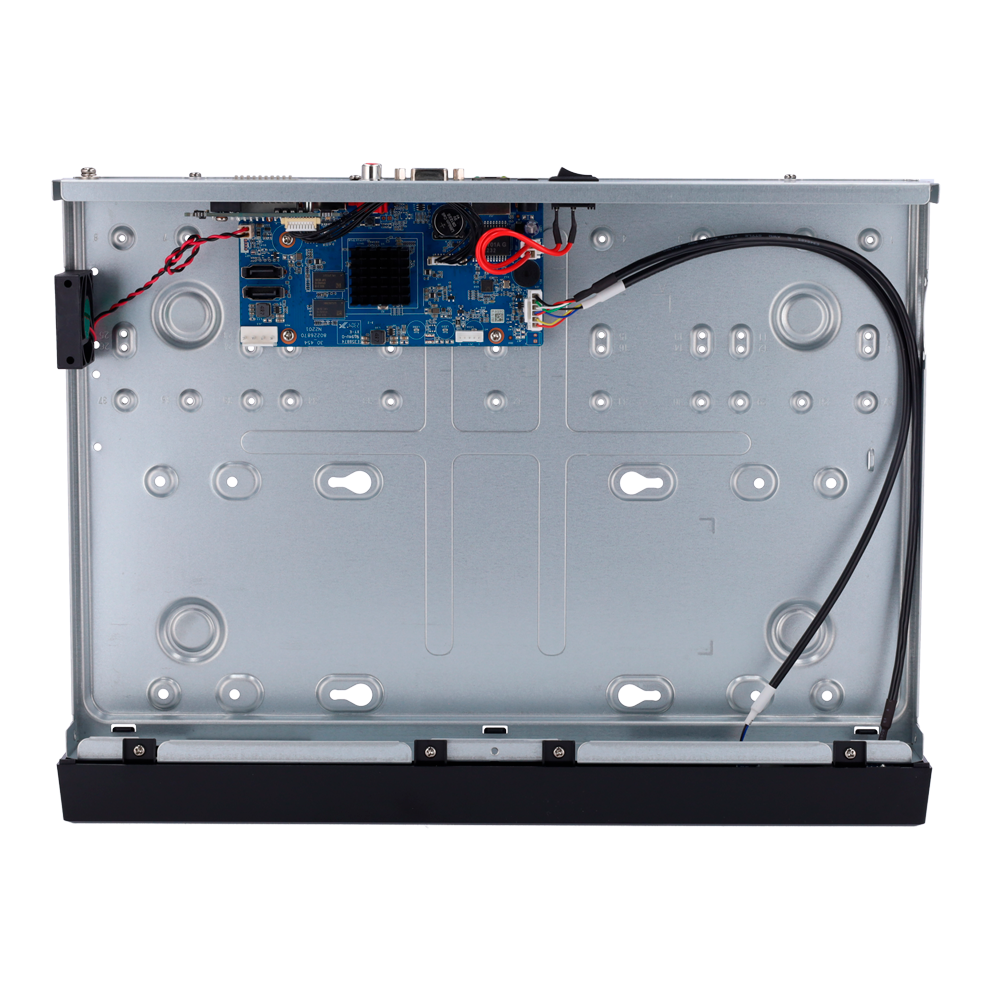

| Internal memory | 2 SATA HDD 3.5" of up to 16 TB (not included) |
| Alarms | 4 Input relays / 2 Output relays |

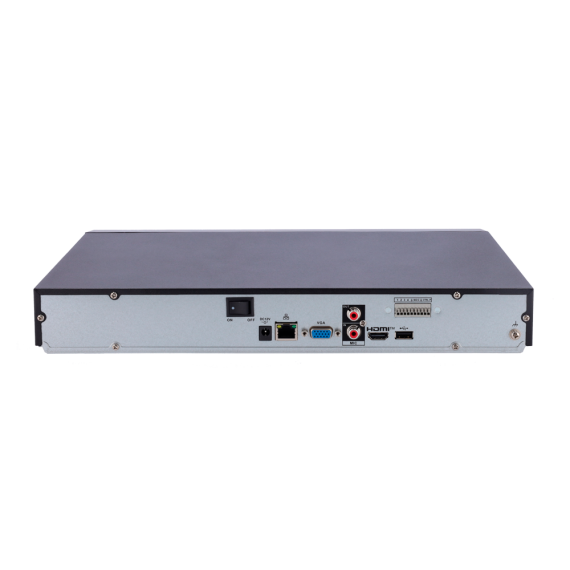

| Communication | 2xUSB / 1 RJ45 10/100/1000M (Ethernet) / 16 10/100 ports, 802.3 Mbps, IEEE [%VAR%] af-at |
| Remote access | Web browser (ActiveX), mobile phone application or Smart PSS software |
| Power | 100–240 VCA, 47-63 Hz |
| Dimensions | 53 (H) x 329,3 (W) x 375 (D) mm / 2.6 Kg (without HDD) |
