| Brand | X-SECURITY |
| Inputs for IP cameras | LAN port up to 16 channels |
| PoE | 8 ePoE IEEE802.3af/at ports |
| IP compatible cameras | X-SECURITY (proprietary protocol), ONVIF |
| Video outputs | 1 HDMI 4K, 1 VGA |
| Bidirectional audio | 1 input, 1 output, RCA |
| Video compression format | Smart H.265+ / H.265 / Smart H.264+/ H.264 |
| Display resolution | 3840× 2160, 1920× 1080, 1280× 1024, 1280× 720, 1024× 768 |
| Total bandwidth | 320 Mbps |
| Recording resolution | 12Mp, 8Mp, 6Mp, 5Mp, 3Mp, 1080P, 1.3Mp, 720P ... |
| Simultaneous multifunction | Pentaplex: Live, Recording, Playback, Backup and Remote Access |
| Alarms | 4 Inputs / 2 Relay NO/NC |
| Recording method | Manual, programmed, motion detection, alarm |
| Artificial intelligence | Facial recognition up to 4Ch (16CH with facial detection camera) or up to 16Ch recognition of humans and vehicles in VCA rules |
| Backup | USB (Memory, HDD, CD-RW, DVR-RW) / Network / SATA |
| Internal memory | 2 SATA HDD 3.5" of up to 10 TB (not included) |

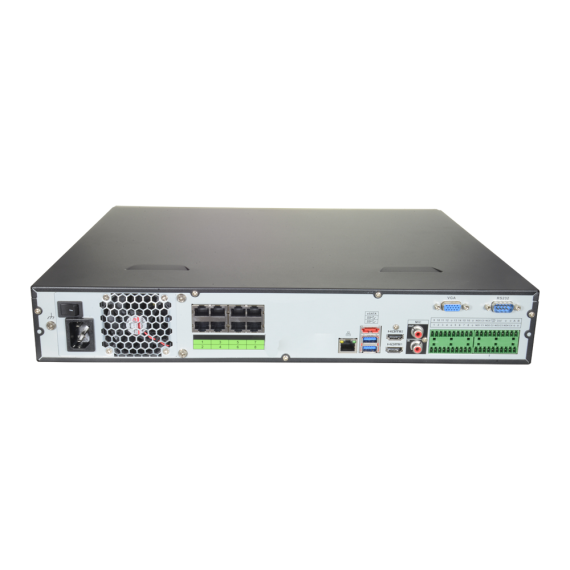

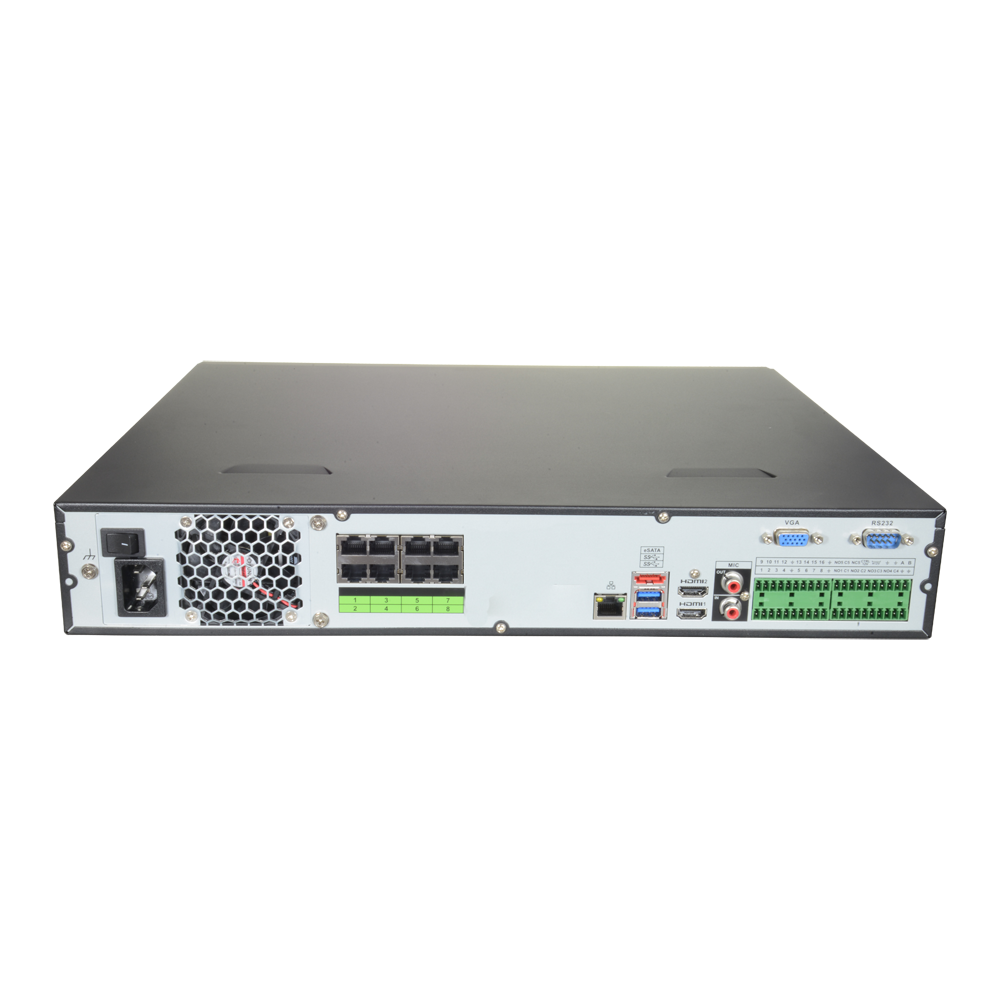

| Communication | 3xUSB (Mouse & backup) / 1 RJ45 10/100/1000M (Ethernet) |
| Remote access | Web browser (ActiveX), mobile phone application or PSS software |
| Power | AC 100~240 V 50~60 Hz |

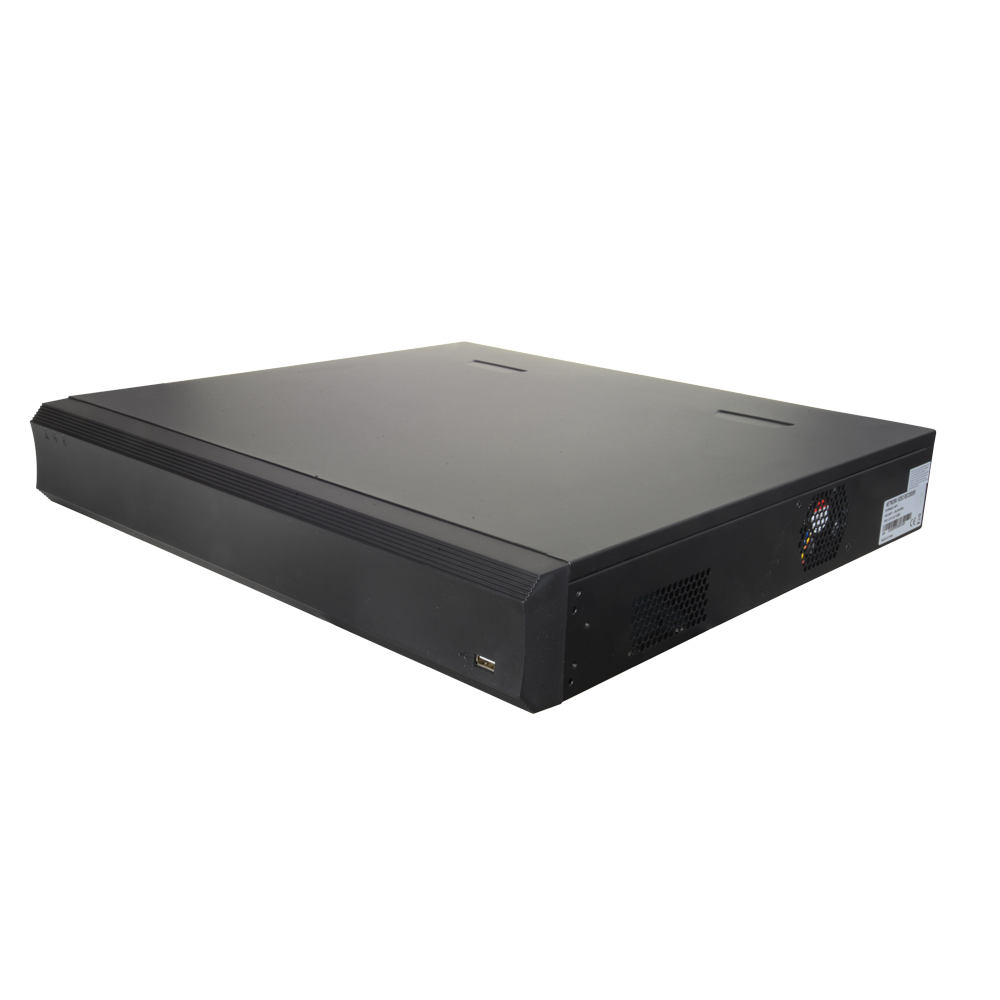

| Dimensions | 53 (H) x 328 (W) x 375 (D) mm / 2.6 Kg (without HDD) |
