| Brand | X-SECURITY |
| Inputs for IP cameras | LAN port up to 16 channels |
| Power over Ethernet | Up to 16 channels 150 W |
| Video outputs | 1 HDMI 4K, 1 HDMI Full HD, 2 VGA |
| IP compatible cameras | X-Security (native protocol), ONVIF |
| Audio inputs | 1 RCA input |
| Audio outputs | 2 RCA outputs |
| Bidirectional audio | Reusing the audio input |
| Video compression format | H.265+ / H.265 / H.264+ / H.264 / MPEG4 |
| Display resolution | HDMI1: 3840×2160; 1920×1080; 1280×1024; 1280 × 720 VGA1: 1920×1080; 1280×1024; 1280×720 HDMI2/VGA2: 1920×1080 |
| Total bandwidth | 320 Mbps |
| Recording resolution | 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 1.3MP, 720p, D1 |
| Decoding resolution | 16-channel@1080P (30 fps) |
| Alarms | 16 Inputs / 6 Relay NO/NC |
| Recording method | Manual, programmed, motion detection, alarm |
| Artificial intelligence | Face recognition up to 14 CH, License plate reading up to 4 CH or Up to 16 CH of human and vehicle recognition in VCA rules. *On-camera analytics |
| Intelligent functions | Line Crossing, Intrusion, Abandoned Object, Face Detection, Heat Map |
| Backup | USB (Memory, HDD, CD-RW, DVR-RW) / Network / SATA |
| Internal memory | 4 SATA HDD 3.5" of up to 10 TB (not included) |

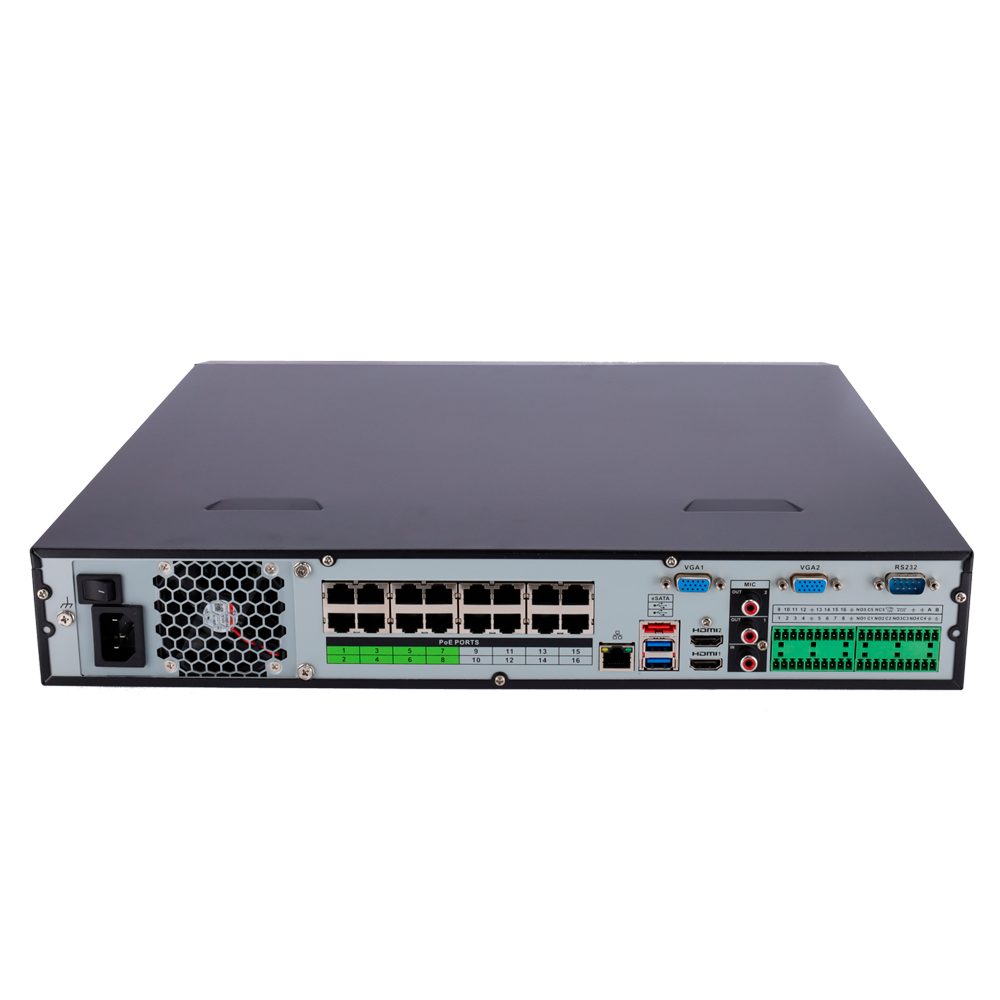

| Communication | 3xUSB Ports / 2 RJ45 10/100/1000M (Ethernet) |
| Remote access | Web browser (ActiveX), mobile phone application or PSS software |
| Power | 100 ~ 240 VAC / 16.7W (without HDD) / 150W (with PoE) |
| Dimensions | 76 (H) x 440 (W) x 412.2 (D) mm / 4.3 Kg (without HDD) |
