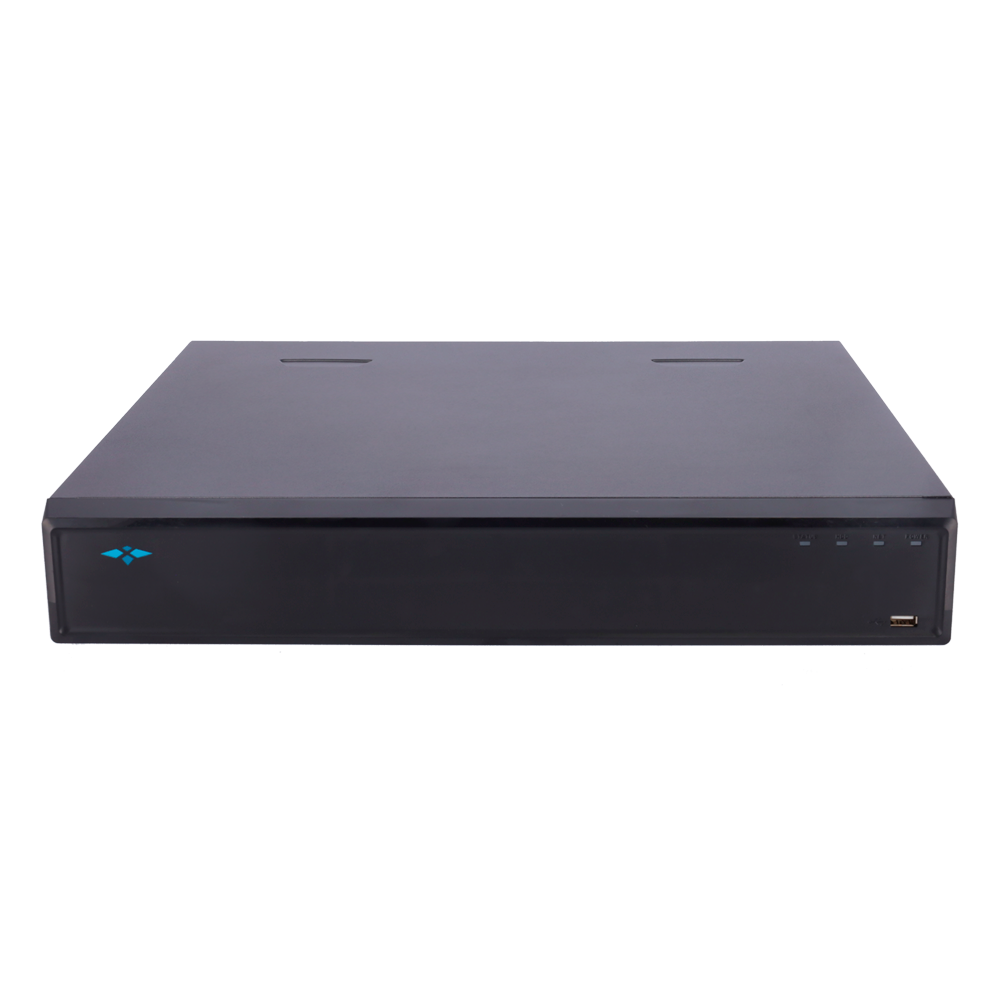

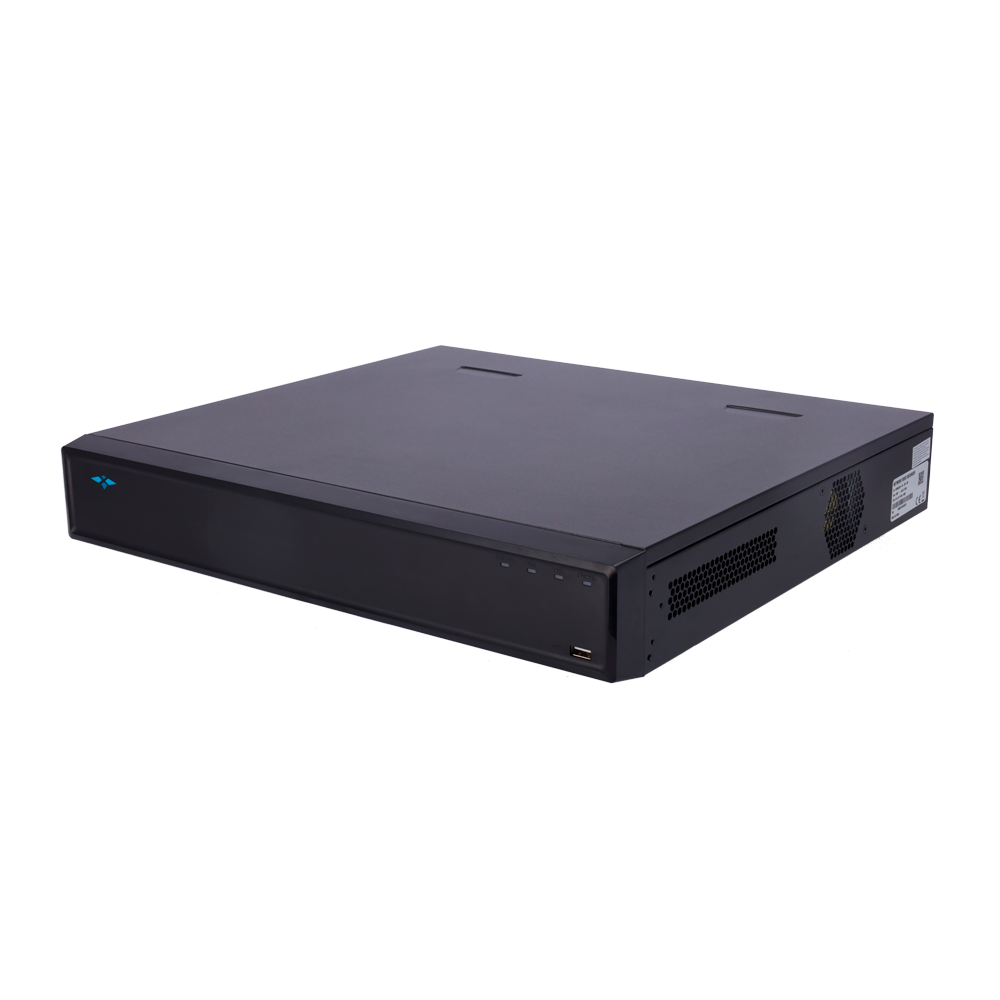

| Brand | X-SECURITY |
| Inputs for IP cameras | 32 channels / 16 POE channels |
| IP compatible cameras | X-SECURITY (proprietary protocol), ONVIF |
| Video outputs | 2 HDMI, 2VGA |
| Bidirectional audio | 1 input, 2 output, RCA |
| Video compression format | Smart H.265+ / H.265 / Smart H.264+/ H.264 |
| Resolution | 32 MP; 24 MP; 16 MP; 12 MP; 8 MP; 5 MP; 4 MP; 1080p; 720p; D1; CIF; QCIF |
| Total bandwidth | 384 Mbps |
| Decoding capacity | 2-ch 32 MP@20 fps; 2-ch 24 MP@20 fps; 4-ch 16 MP@30 fps; 5-ch 12 MP@30 fps; 8-ch 8 MP@30 fps; 12-ch 5 MP@30 fps; 16-ch 4 MP@30 fps; 32-ch 1080p@30 fps AI enabled: 1-ch 32 MP@20 fps; 1-ch 24 MP@20 fps; 2-ch 16 MP@30 fps; 4-ch 12 MP@30 fps; 4-ch 8 MP@30 fps; 8-ch 5 MP@30 fps; 12-ch 4 MP@30 fps; 24-ch 1080p@30 fps |
| Simultaneous multifunction | Pentaplex: Live, Recording, Playback, Backup and Remote Access |
| Alarms | 16 inputs / 6 relay |
| Recording method | Manual, programmed, motion detection, alarm |
| Artificial intelligence | Facial recognition up to 16Ch, perimeter protection up to 4Ch and SMD plus up to 8CH |
| Backup | USB (Memory, HDD, CD-RW, DVR-RW) / Network / SATA |
| Internal memory | 4 SATA HDD up to 16 TB (not included) |
| Communication | 3xUSB (Mouse & backup) / 2 RJ45 10/100/1000M (Ethernet) |
| Remote access | Web browser (ActiveX), mobile phone application or PSS software |
| Installation | Rack or Desktop |
| Power | AC 100~240V 50~60 Hz |
| Dimensions | 70 (H) x 440 (W) x 415.1 (D) mm / 4.74 Kg |
