Brand | X-Security | Video format | HDTVI / HDCVI / AHD / CVBS / IP |
Video inputs | 4 Channels BNC (HDTVI / HDCVI / AHD / CVBS) |
Hybrid configuration | Up to 6 IP Channels (6Mpx), replacing all the BNC channels |
Video outputs | 1 HDMI 1080p, 1 VGA |
Video / audio compression | H.265+/H.265/H.264+/H.264 |
Display resolution | 1920x1080, 1280x1024, 1280x720 |
Bandwidth | 32 Mbps |
Recording resolution | 5 M-N, 4 M-N,1080p, 1080N, 720p, 960H, D1, CIF |
Main Stream coding | 5M-N(10 FPS); 4M-N/1080p(15 FPS); 1080N / 720p / 960H / D1 / CIF (25/30 FPS) |
Extra Stream coding | D1 / CIF (1~15 FPS) |
Simultaneous multifunction | Pentaplex: Live, Recording, Playback, Backup and Remote Access |
Audio inputs | 4 Channel RCA |
Audio outputs | 1 Channel RCA |
Bidirectional audio | Reusing the audio input/output |
Alarms | 8 inputs / 3 relay |
Video analysis | IVS: Line crossing | Area intrusion |
Facial recognition | 1 live analogue face comparison channel |
Intelligent motion detection | Up to 4 channels capable of classifying targets amongst humans and vehicles |
Recording method | Manual, programmed, motion detection, alarm |
Backup | USB / Network |

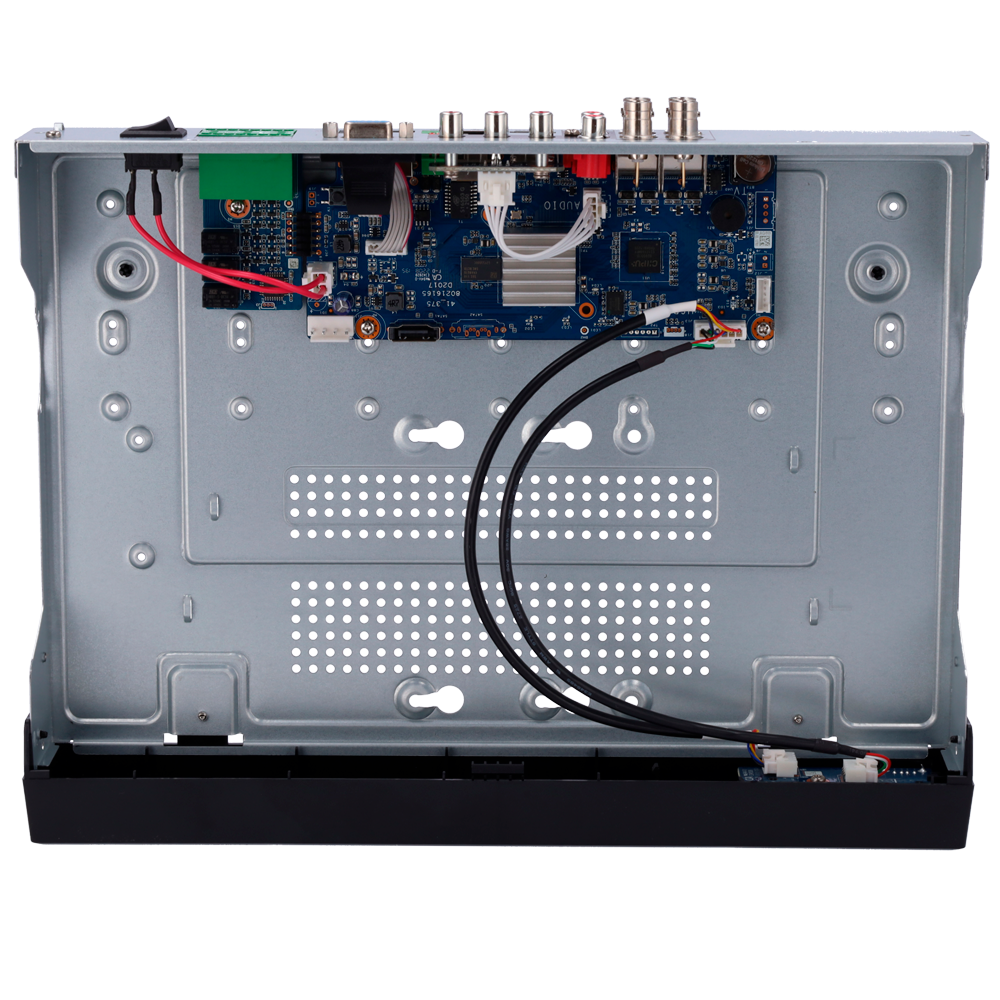

Internal memory | 1 SATA HDD 3.5" of up to 16 TB (not included) |

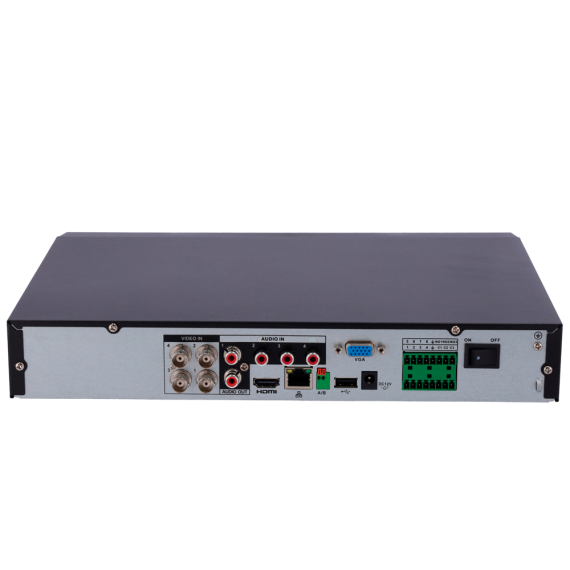

Communication | RS485 (PTZ) /2 x USB (Mouse and backup) / RJ45 10/100 (Ethernet) |
Remote access | Web browser (ActiveX), mobile phone application or PSS software |
Power | DC 12V / 1.5A |
Dimensions / Weight | 55 (H) x 260 (W) x 325 (D) mm / 1.1 Kg |
