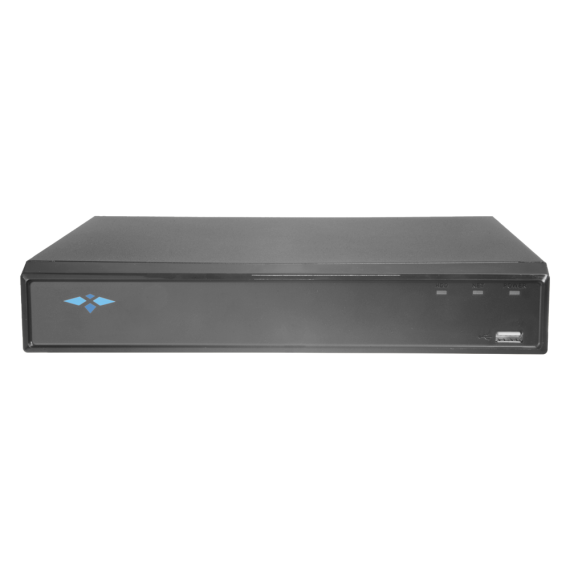

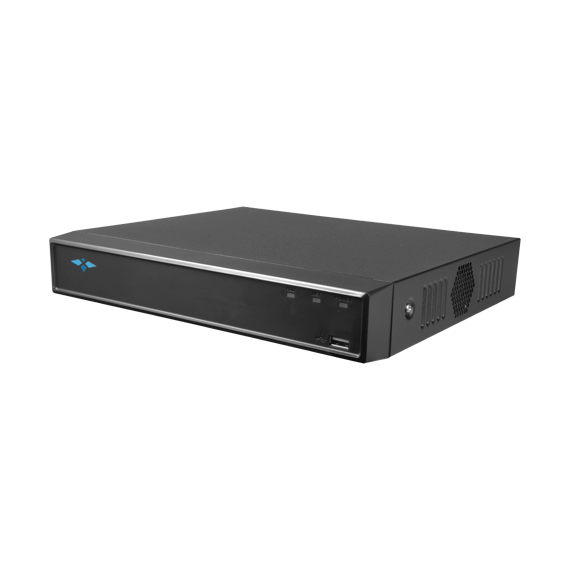

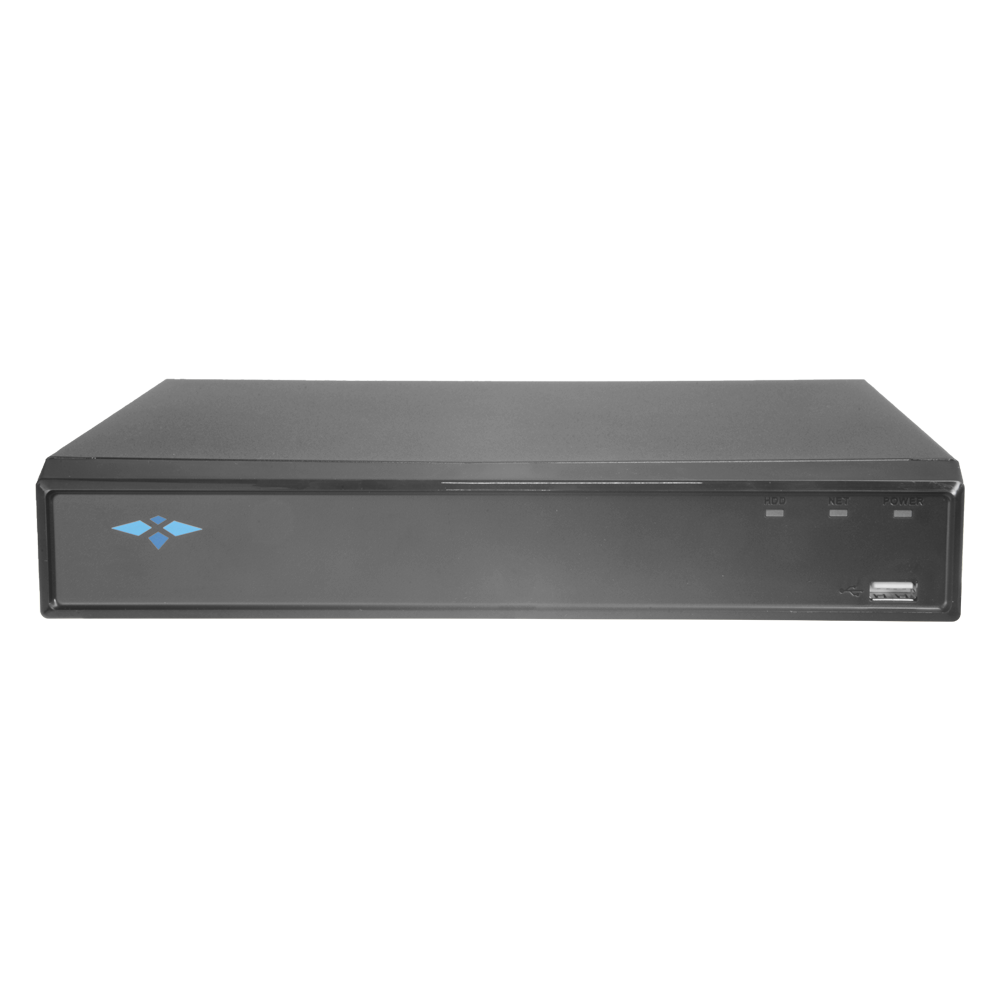

| Brand | X-Security |
| Video format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video inputs | 8 Channels BNC (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid configuration | Up to 16 IP Channels (8Mpx), replacing all the BNC channels |
| Video outputs | 1 HDMI 1080p, 1 VGA |
| Video / audio compression | H.264+ / H.264 |
| Display resolution | HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Total bandwidth | 128 Mbps |
| Recording resolution | 8M (7FPS) / 6M (10FPS) / 5M (12FPS) / 4K-N, 4MP, 3MP(15fps) / 4M-N or 1080P or 720P or 960H or D1 or CIF (25/30fps) |
| Main Stream coding | 8M (7FPS) / 6MP(10FPS) / 5MP(12FPS) / 4K-N, 4MP, 3MP(15FPS) / 4M-N, 1080P, 720P, 960H, D1, CIF (25/30FPS) |
| Extra Stream coding | 960H(15FPS) / D1, CIF(25/30FPS) |
| Simultaneous multifunction | Pentaplex: Live, Recording, Playback, Backup and Remote Access |
| Audio inputs | 1 Channel RCA |
| Audio outputs | 1 Channel RCA |
| Bidirectional audio | Reusing the audio input/output |
| Alarms IN/OUT | No |
| Video analysis | IVS: Face detection / People and vehicle recognition / Line crossing / Intrusion |
| Intelligent motion detection | Up to 8 channels capable of classifying targets amongst humans and vehicles |
| Recording method | Manual, programmed, motion detection, alarm |
| Backup | USB / Network |
| Internal memory | 1 SATA HDD 3.5" of up to 10 TB (not included) |

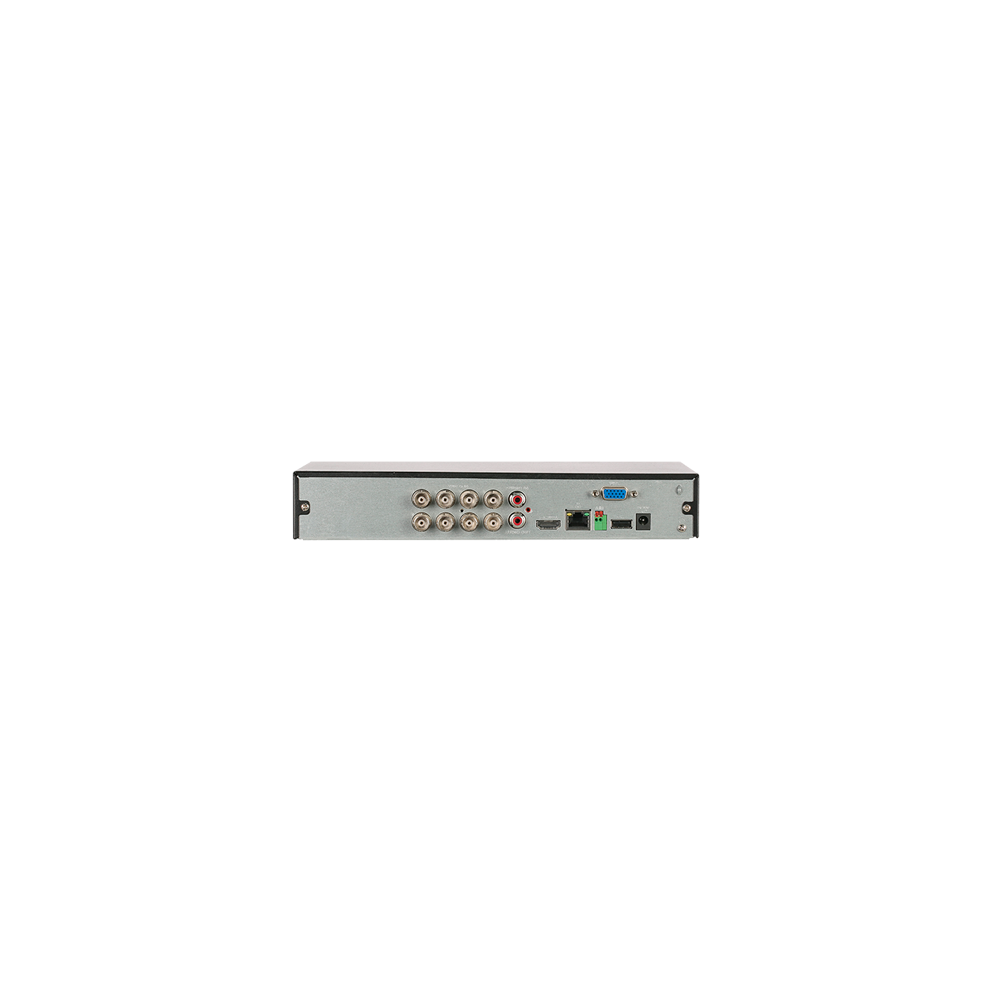

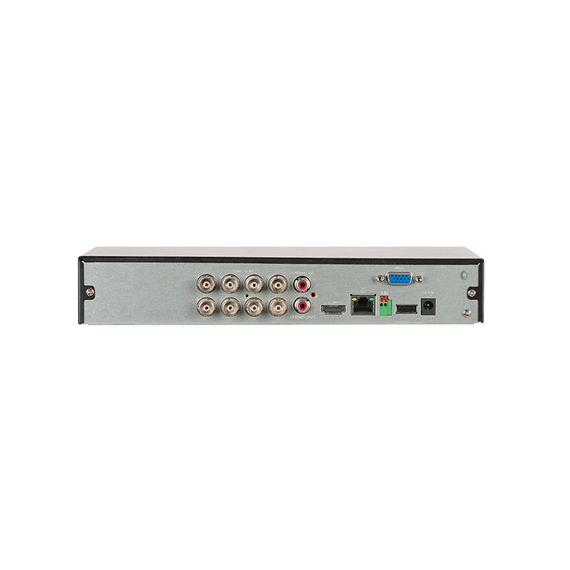

| Communication | RS485 (PTZ) /2 x USB (Mouse and backup) / RJ45 10/100 (Ethernet) |
| Remote access | Web browser (ActiveX), mobile phone application or PSS software |
| Power | DC 12V / 2A |
| Dimensions / Weight | 44.7 (H) x 260 (W) x 238 (D) mm / 1 Kg |
