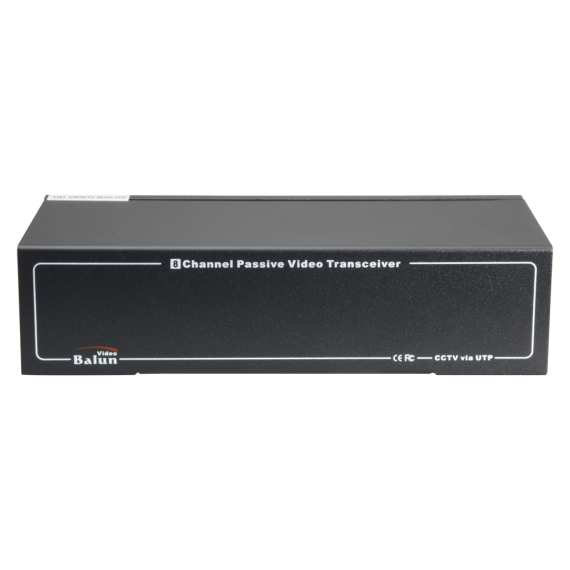

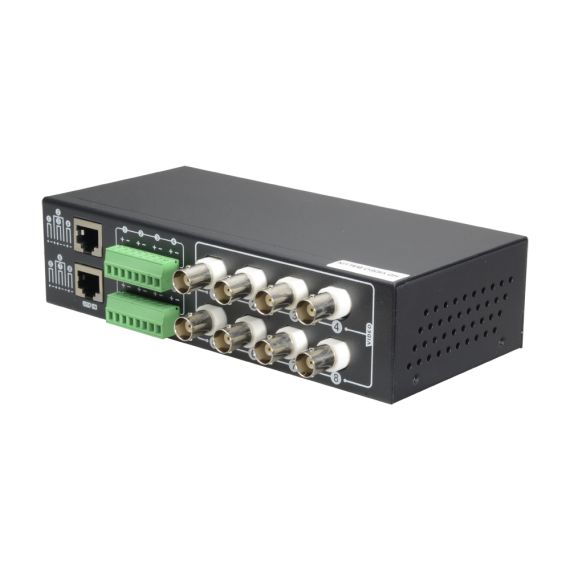

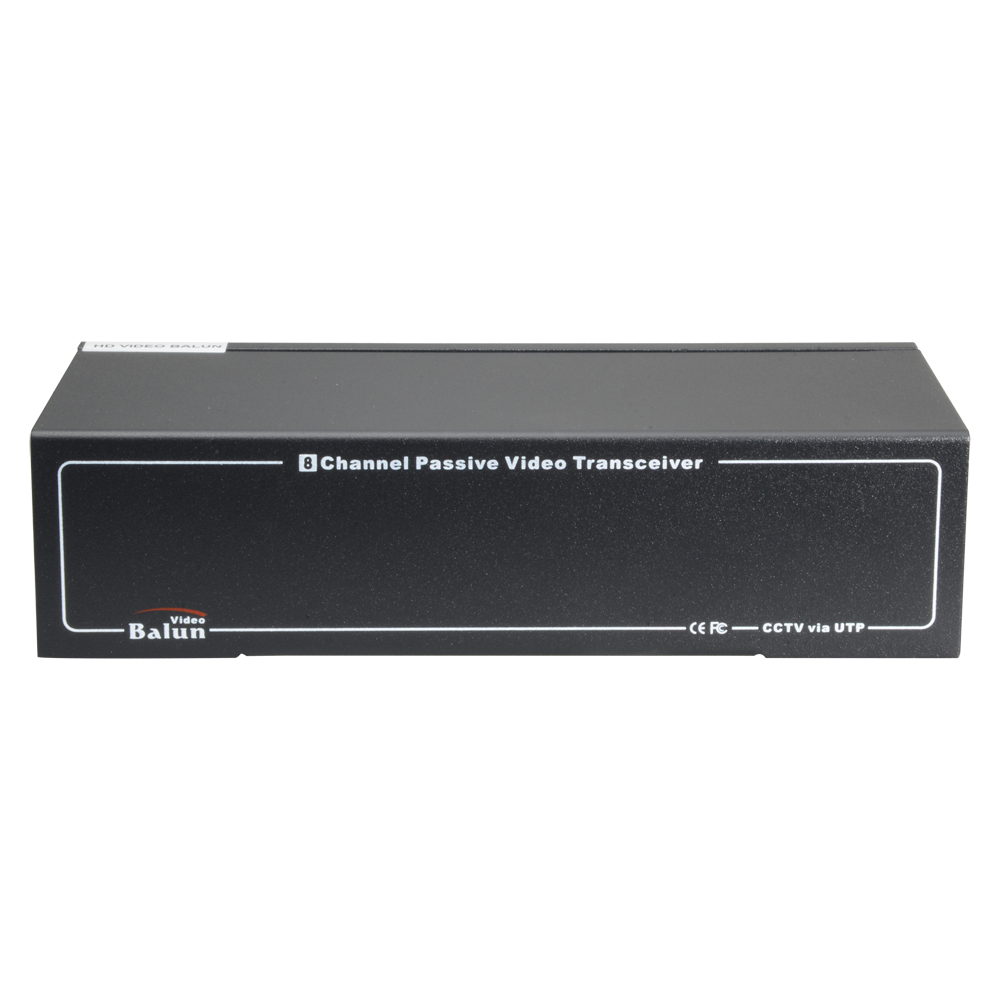

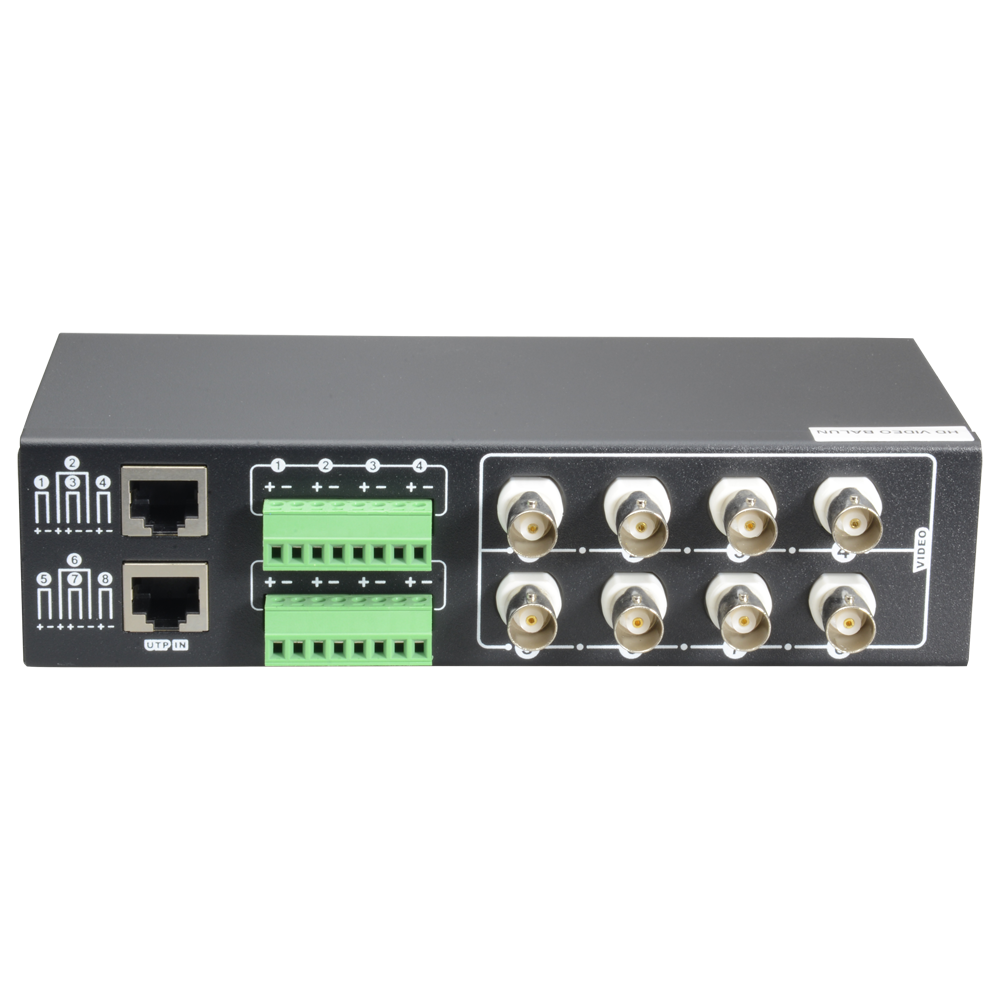

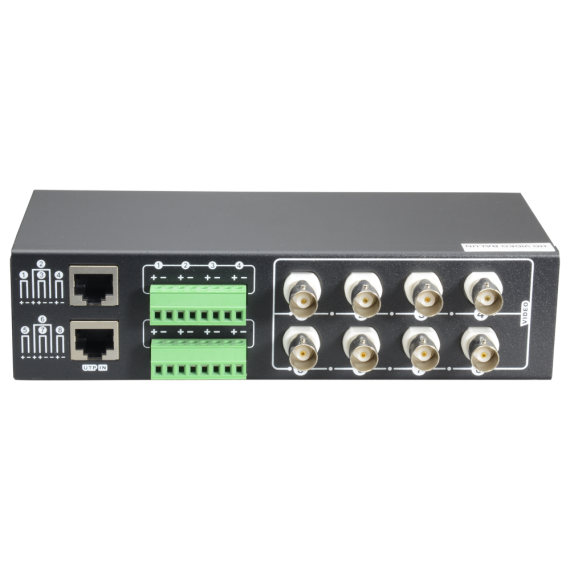

MARCA BLANCA BA608P-HD

MARCA BLANCA BA608P-HD

Video Balun 4N1 (HDTVI, HDCVI, AHD y CVBS) - 8 passive channels - Includes 8 BA612P-HAC - BNC and RJ45 connection - Range: 180 ~ 440 m - Rack mount possibility 19"

Les merShow less

kr 1,042.20

Referanse:

BA608P-HD

Merke:

Last ned produktark

Beskrivelse
Produktdetaljer

Beskrivelse

Balun (transceiver)
Optimized for HD video: HDTVI / HDCVI / AHD and CVBS
8 channels
Passive
BNC/RJ45
Video
Maximum range 440 m

Includes 8 individual baluns BA612P-HAC to the side of the camera

Input Tx / Output Rx	8 female BNC connectors for video
Output Tx / Input Rx	2 connectors RJ45 or 8 clamp connectors for UTP cable CAT5
Bandwidth	DC up to 42 MHz
Video format	NTSC, PAL, SECAM
Impedance	BNC 75 Ω, UTP 100 Ω
Distance	HDTVI 190/190/180 m (720p/1080p/5Mpx), HDCVI 440/230/230 m (720p/1080p/4Mpx) and AHD 320/250/200 m (720p/1080p/5Mpx)
Power	Passive (not required)
Temp. Functioning	-20 ºC ~ 70º C
Dimensions	45 (H) x 180 (W) x 85 (D) mm
Weight	580 g

Les merShow less

Produktdetaljer

Referanse BA608P-HD
