SAFIRE BA610-HAC

SAFIRE UTP passive transceiver - 4 en 1 (HDTVI HDCVI AHD CVBS) - 1 video channel - Passive, connector of 2 pins - Range: 150 ~ 400 m - 2 units

kr 66.59

Referanse:

BA610-HAC

Merke:

Beskrivelse

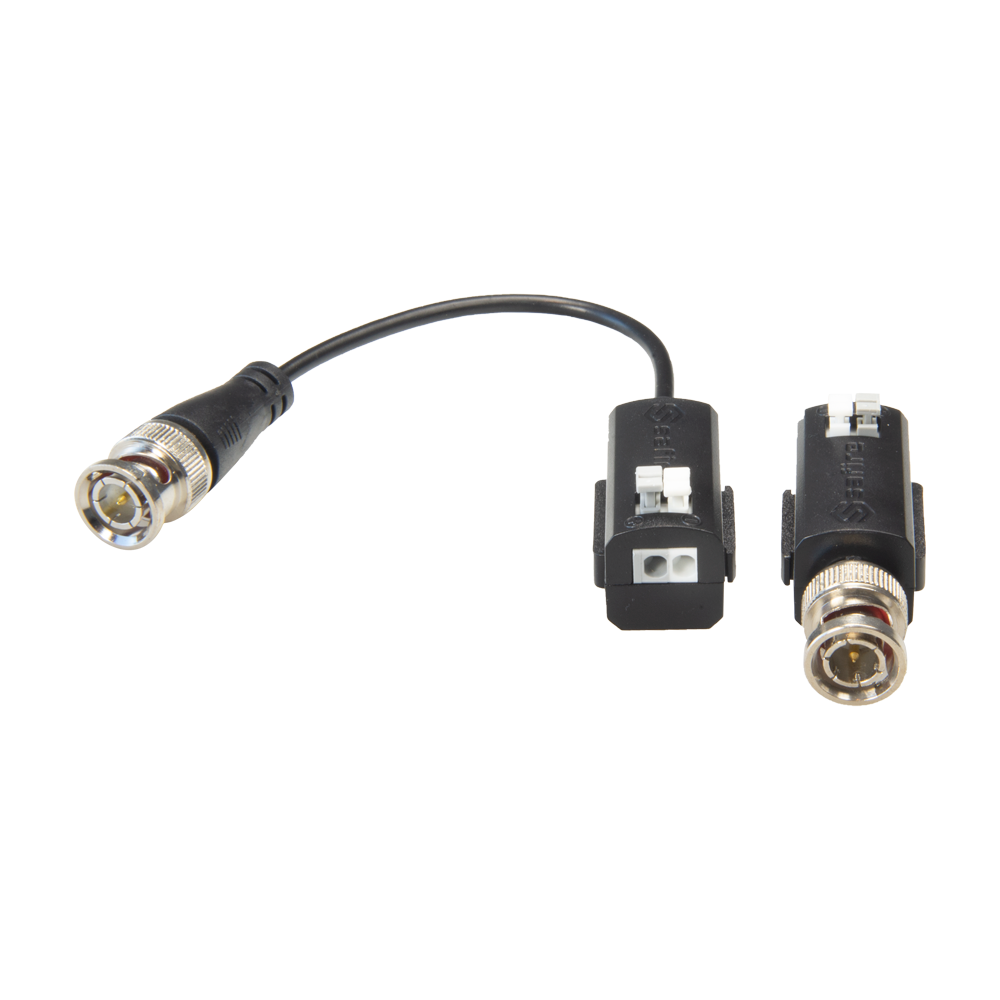

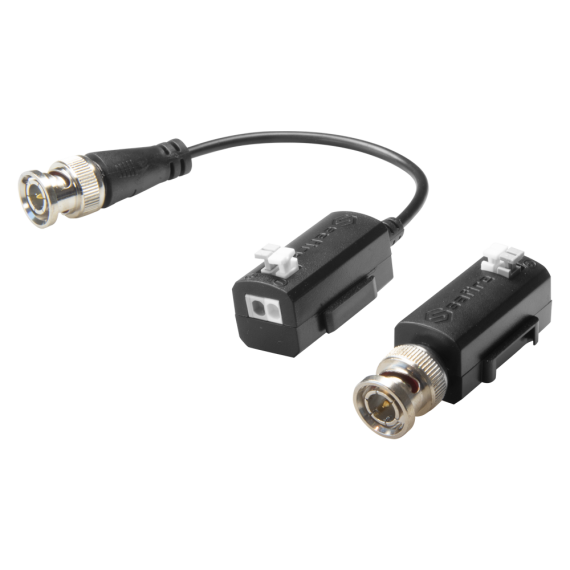

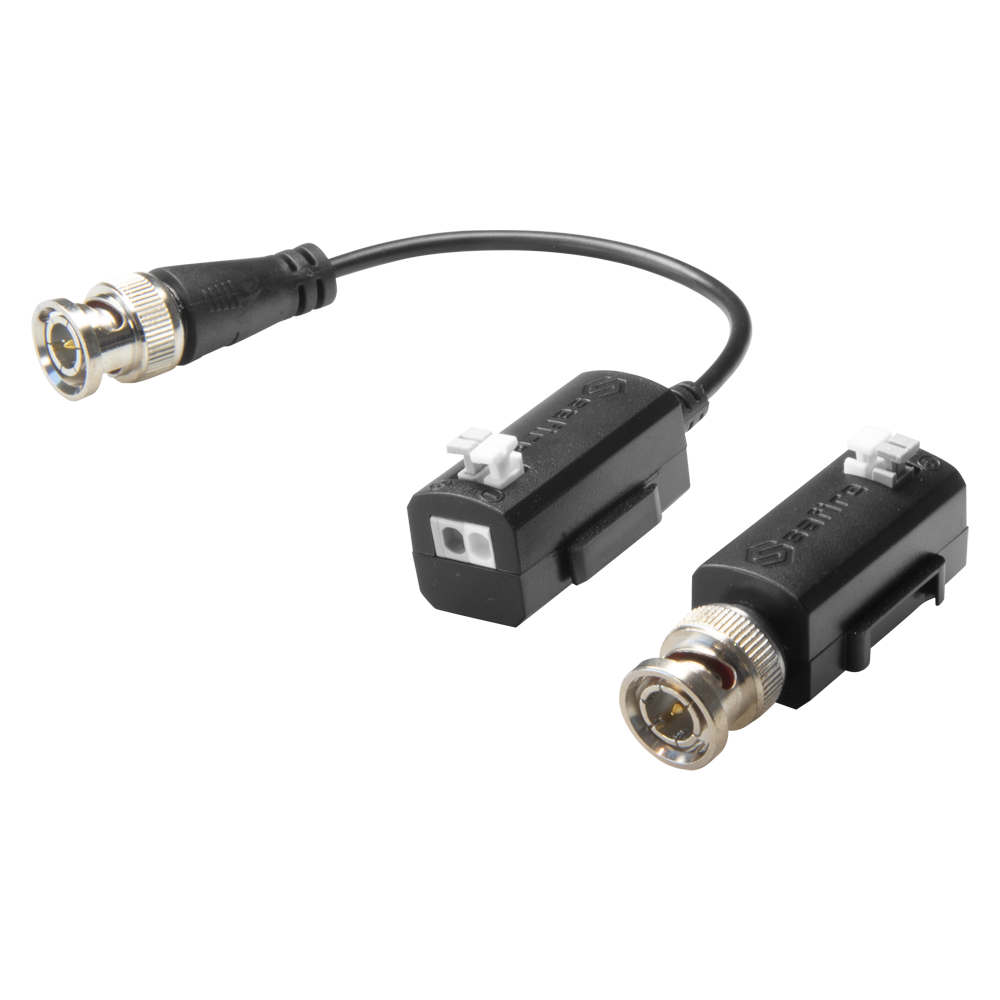

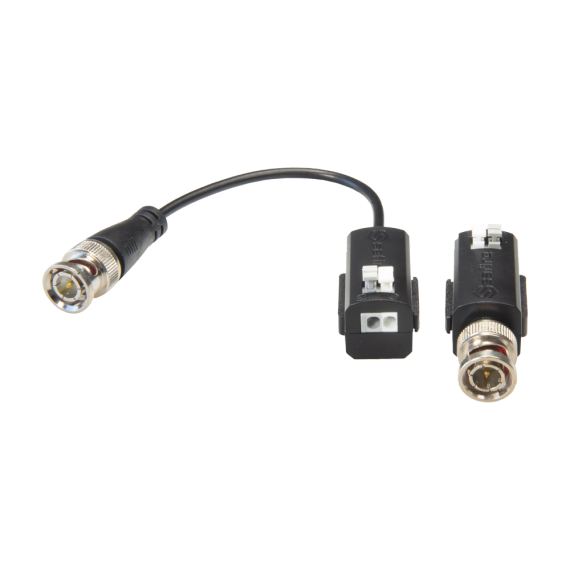

Balun (Transceiver) SAFIRE
Optimized for 4 in 1 (HDTVI HDCVI AHD CVBS)
1 channel
Passive
BNC/UTP 2 pins
Video
Maximum range HDTVI 150/250 m (3Mpx/1080p), HDCVI 150/250/400 m (4Mp/1080p/720p) and AHD 200/350 m (1080p/720p)

2 units (transmitter and receiver, one without extender cable)

Brand	SAFIRE
Number of channels	1 channel
Power	Not required (Passive)
Video Input/Output	BNC (male)
Transmission distance	HDTVI 150/250 m (3Mpx/1080p), HDCVI 150/250/400 m (4Mp/1080p/720p) and AHD 200/350 m (1080p/720p)
Twisted pair connector	Connector with 2 pins
Temp. operation	-10º C ~ +55º C
Humidity	0 ~ 95 %
Input impedance	75 Ohm
Output Impedance	100 Ohm
Cable category	UTP category 5E/6
