SAFIRE BA612P-HAC

SAFIRE UTP passive transceiver - Optimised for HDTVI, HDCVI and AHD - 1 video channel - Passive, connector of 2 pins - Range: 150 ~ 400 m - 2 units

Les merShow less

kr 92.64

Referanse:

BA612P-HAC

Merke:

Last ned produktark

Beskrivelse
Produktdetaljer

Beskrivelse

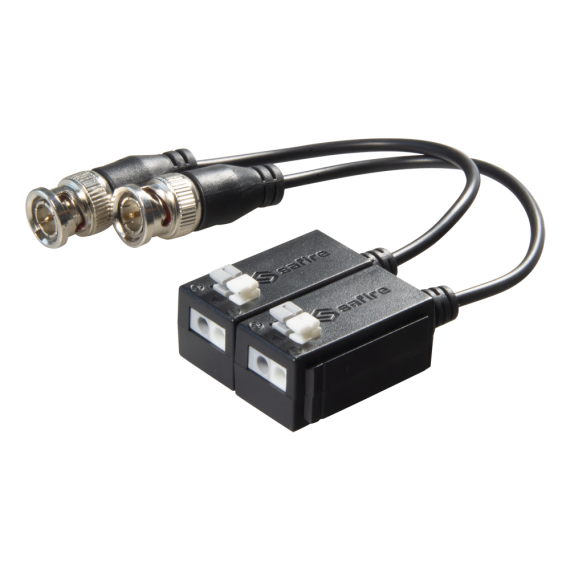

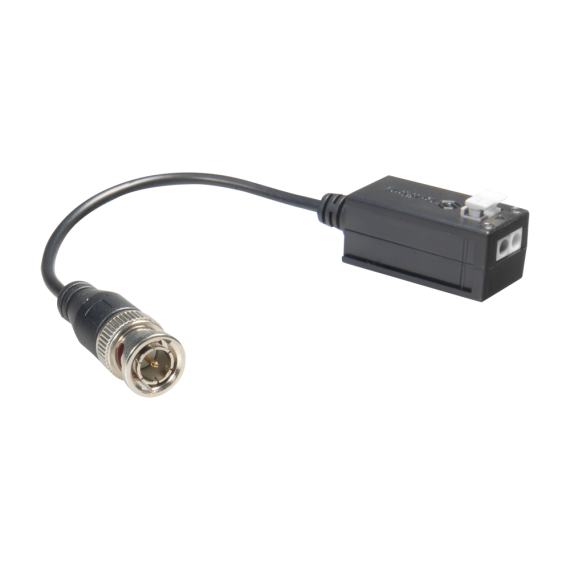

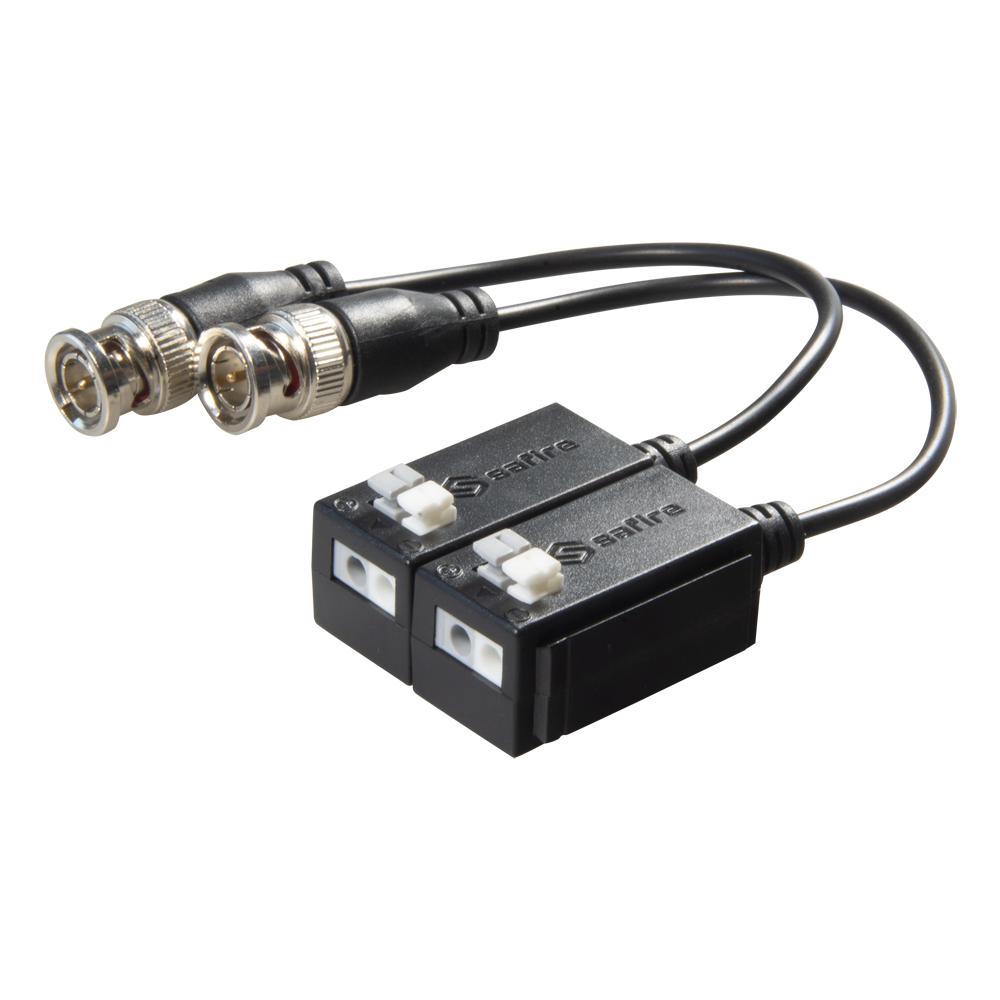

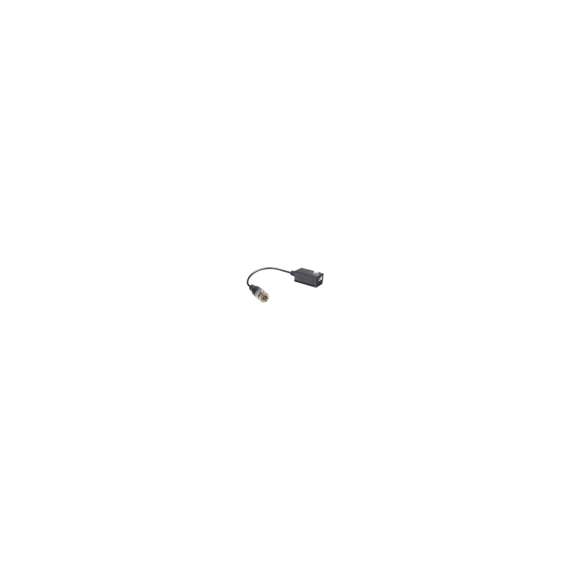

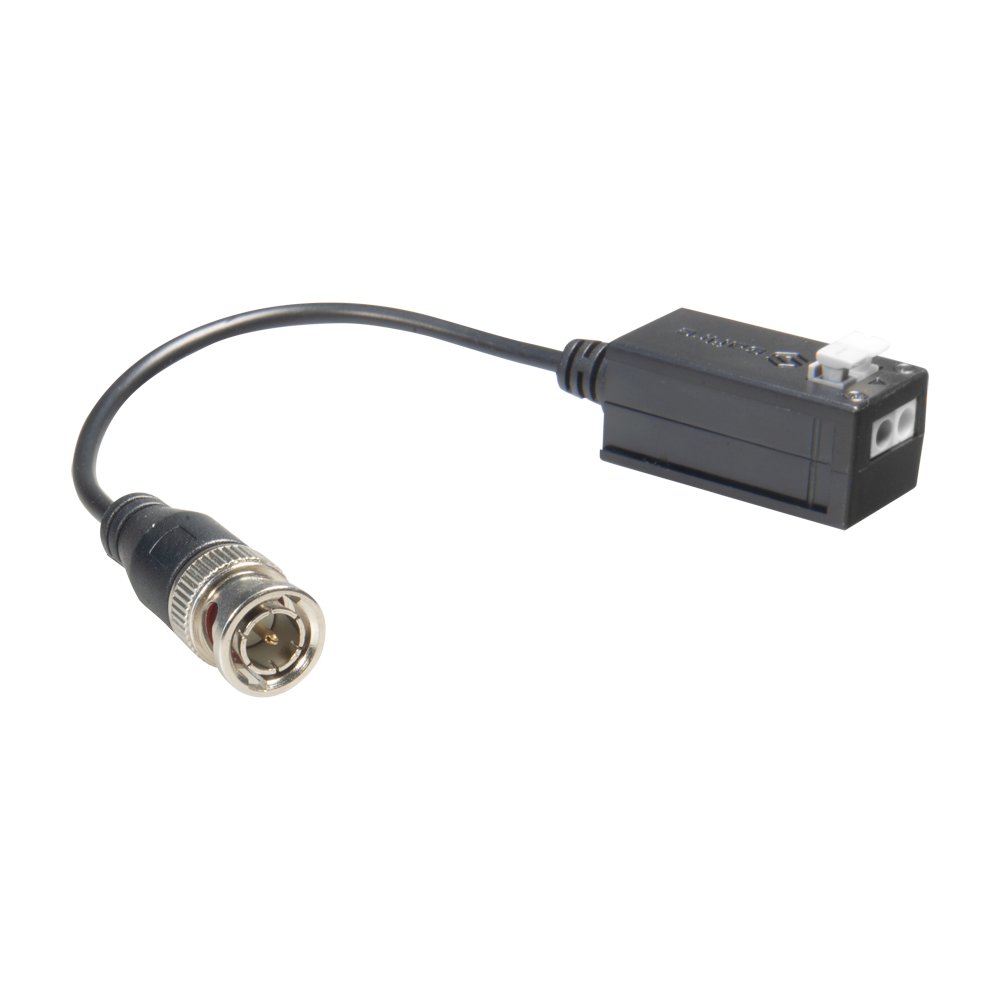

Passive twisted pair video transceiver from Safire, 2 units for transmission and reception, specific for high definition analog (HD).

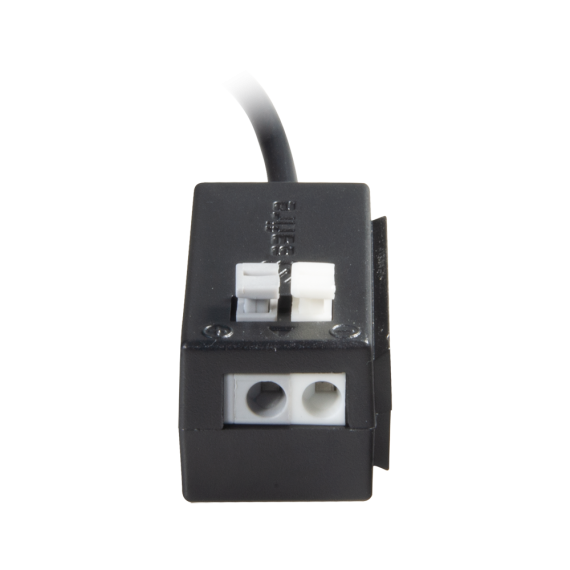

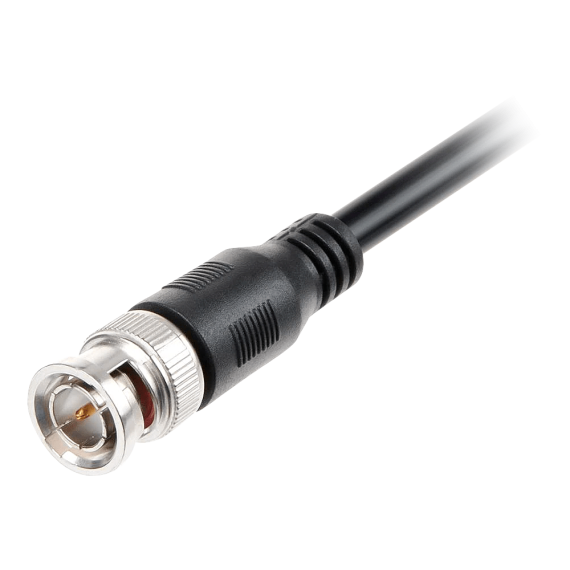

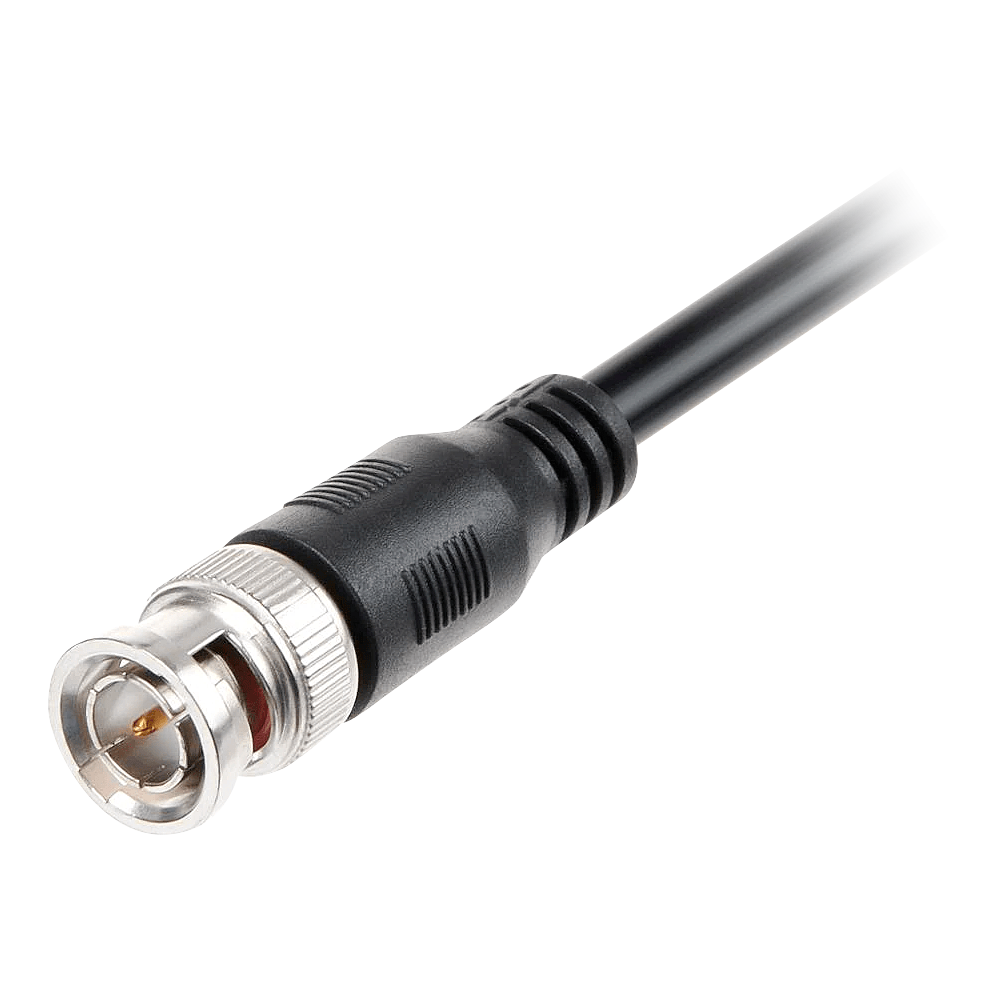

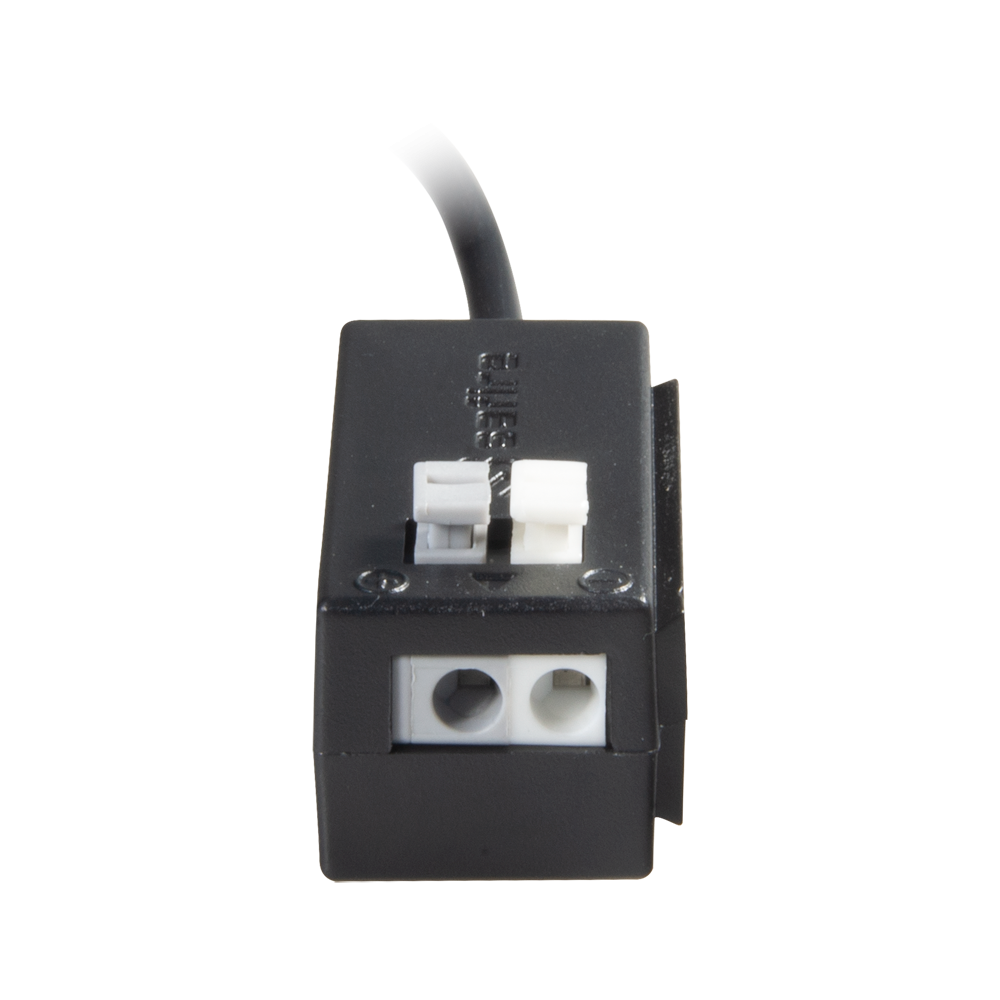

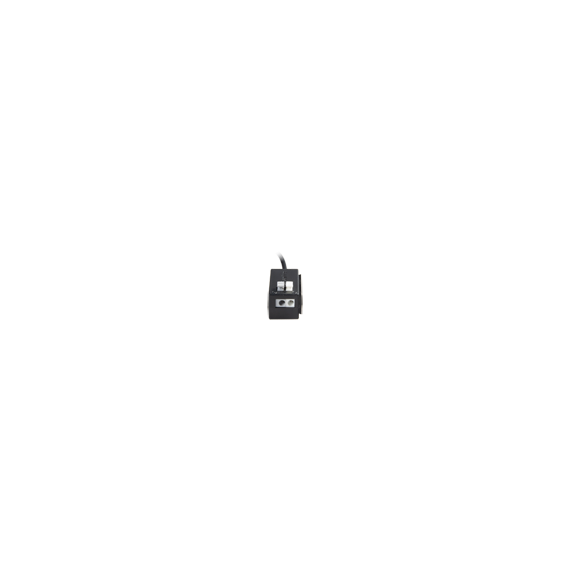

Optimized for the transmission of video signal of 1 high definition analog camera HDTVI, HDCVI or AHD by twisted pair. It has BNC male connector and cable insertion terminal by pressure, two-pin connector.

The maximum length between the end that connects to the camera and the end that connects to the video output depends on the signal resolution and the high definition technology used:

HDTVI 720p - 250 m
HDTVI 1080p - 250 m
HDTVI 4Mp (2560*1440) - 150 m
HDCVI 720p - 400 m
HDCVI 1080p - 250 m
HDCVI 4Mp (2560*1440) - 150 m
AHD 720p - 350 m
AHD 1080p - 200 m

Brand	SAFIRE
Number of channels	1 channel
Power	Not required (Passive)
Video Input/Output	BNC (male)
Transmission distance	HDTVI 250/250/150 m (720p/1080p/4 Mp), HDCVI 400/250/150 m (720p/1080p/4 Mp) AHD 350/200 m (720p/1080p)
Twisted pair connector	Two pin connector
Crosstalk	60 dB
Input impedance	75 Ohm
Output Impedance	100 Ohm
Cable category	UTP category 5/5E/6
