MARCA BLANCA BA614P-HAC

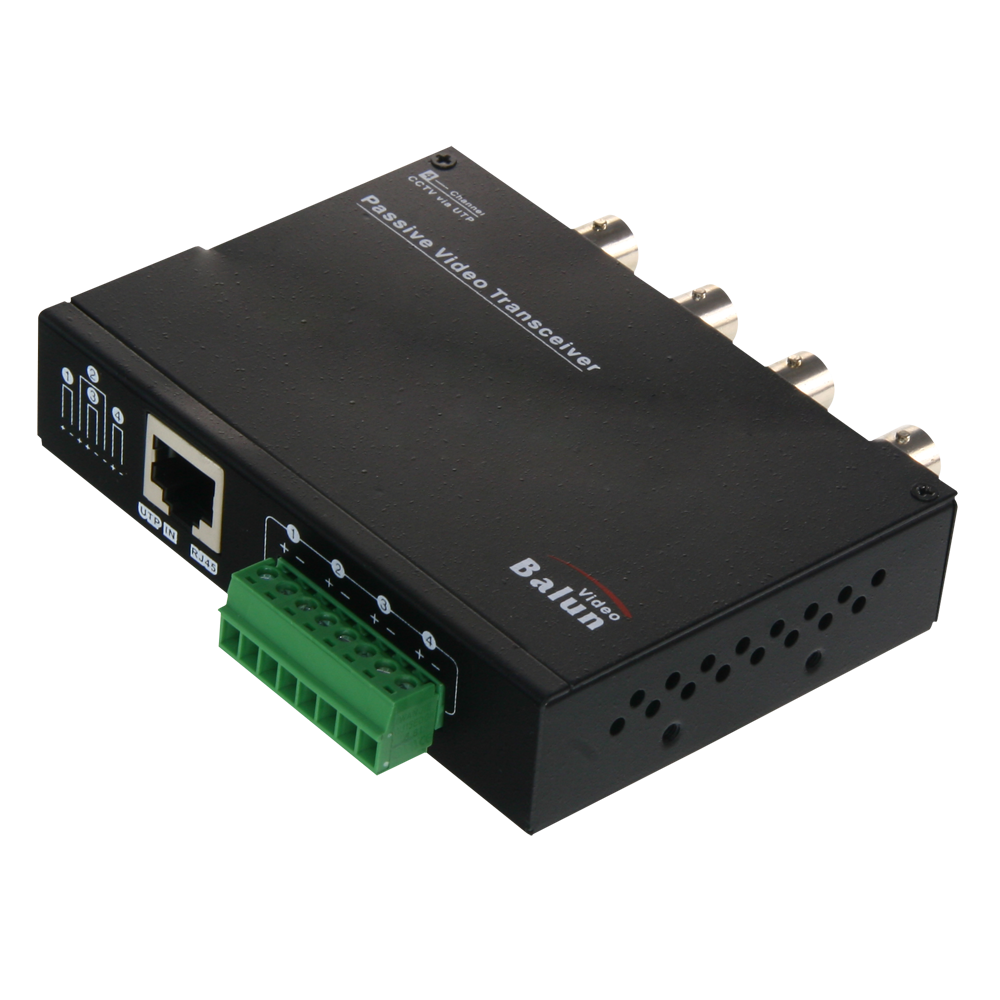

Passive video transceiver by twisted pair of 4 channels, optimized for high definition video HDTVI / HDCVI / AHD / CVBS. It can operate as transmitter or receiver, and it permits to transmit the signal of up to four video cameras via a single UTP cable.

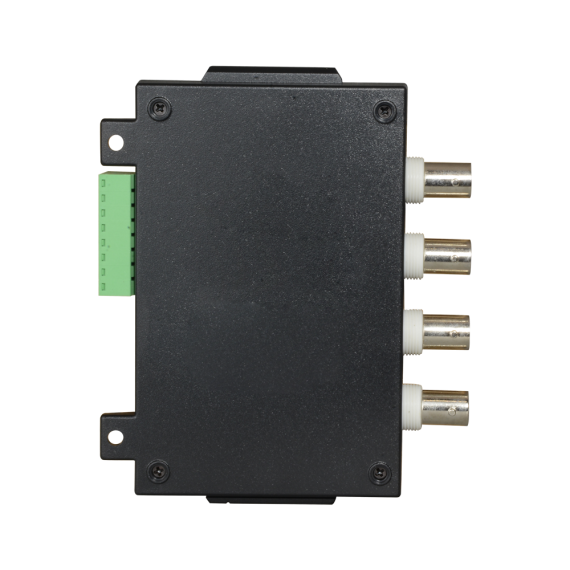

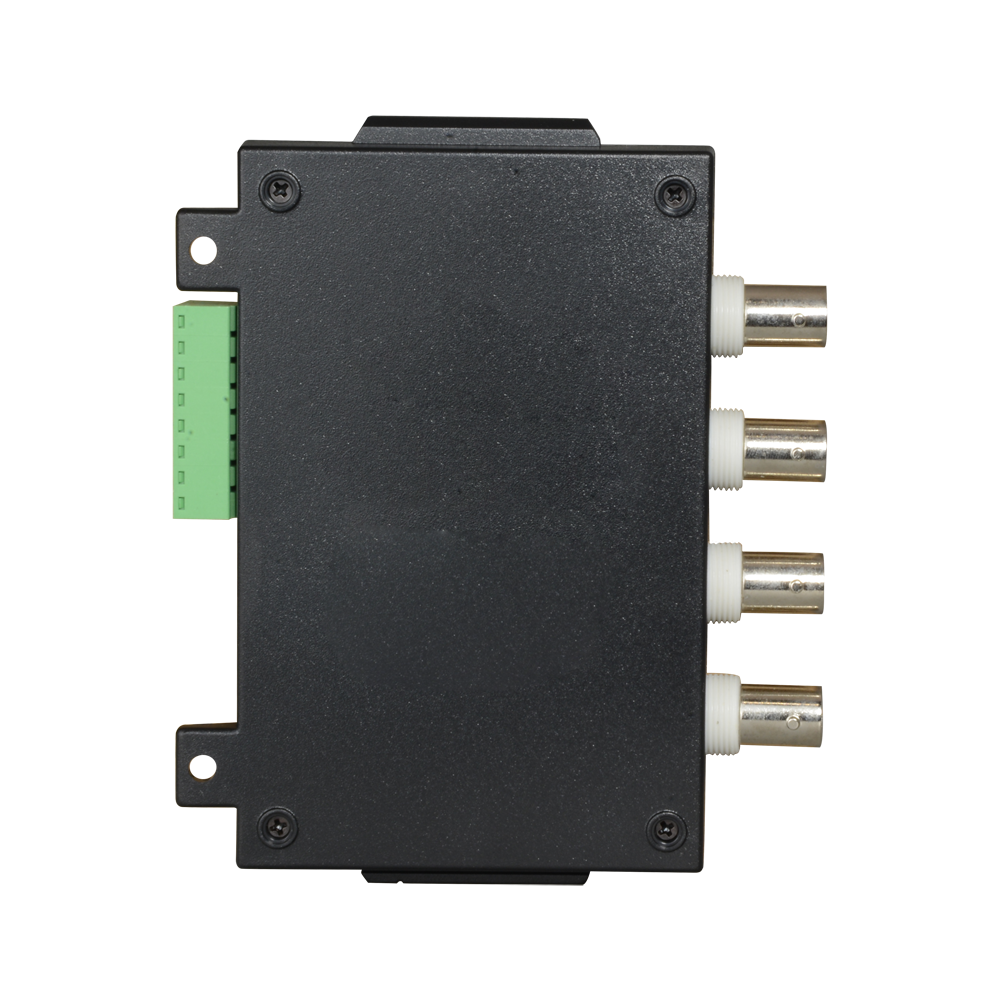

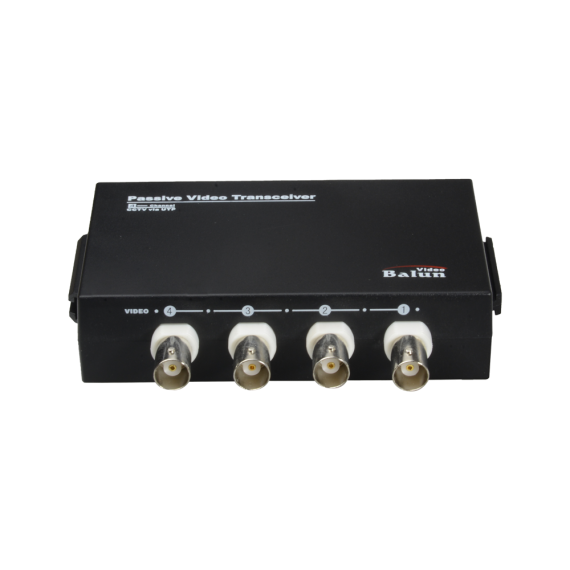

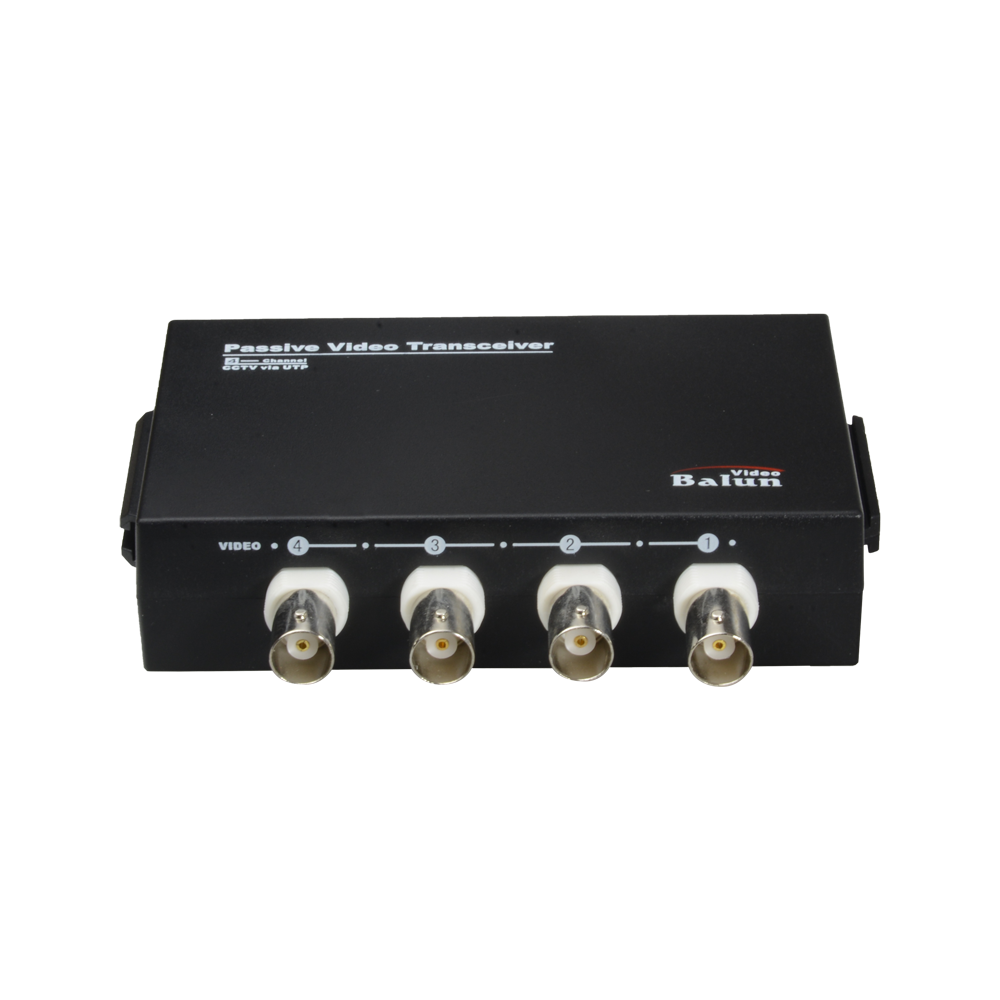

The adapter has 4 BNC connectors for connecting to a DVR. Includes 4 individual baluns BA612P-HAC to connect the cameras.

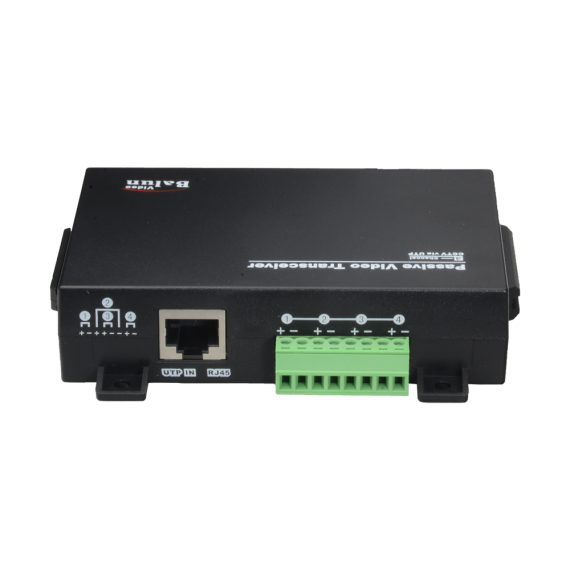

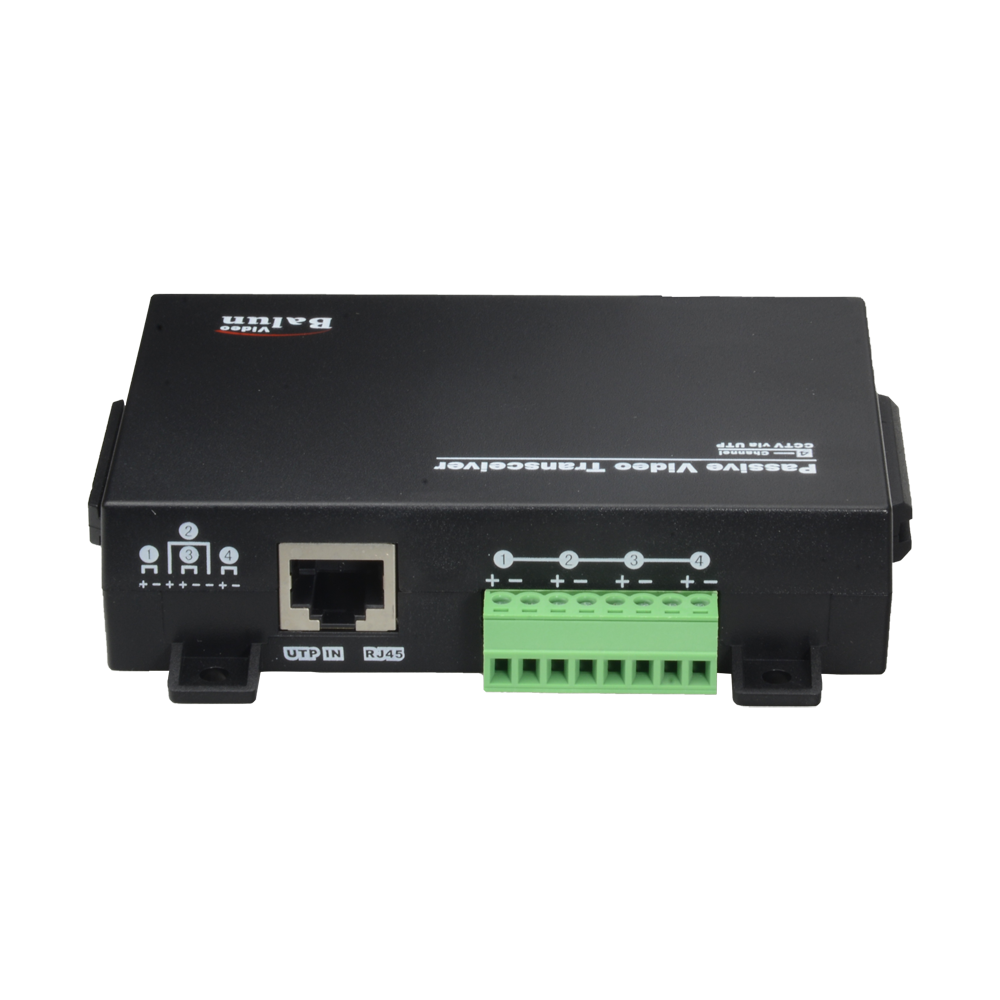

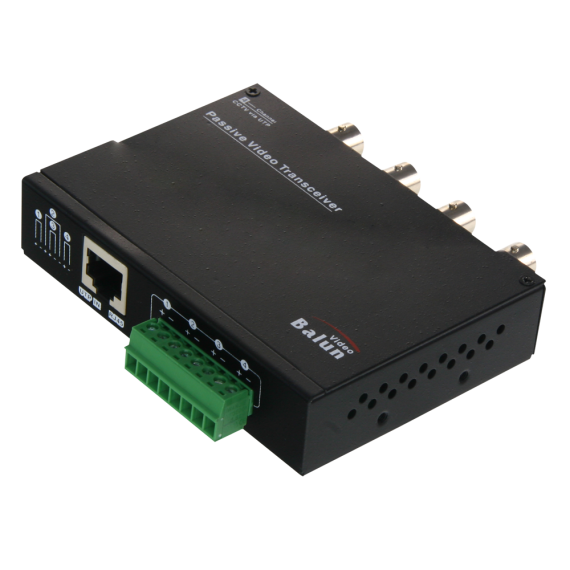

It also has a connector for UTP cable, which works with RJ45 or with clamps for 4 contacts +/-, for a wired cable connection.

The maximum length between the end that connects to the camera and the end that connects to the video output is :

• HDTVI 720p - 200 m
• HDTVI 1080p - 300 m
• HDCVI 720p - 400 m
• HDCVI 1080p - 200 m
• AHD 720p - 300 m
• AHD 1080p - 300 m
• AHD 4 MP - 300 m
• HDTVI 4 MP 100 m
• HDCVI 4 MP 200 m
• HDTVI 4K 100 m
• HDCVI 4K 200 m

  Rack mount possibility 19".





  Input Tx / Output Rx	4 female BNC connectors for video
  Output Tx / Input Rx	1 connector RJ45 or 4 connectores with clamps for the UTP-cable CAT5
  Bandwidth	DC up to 42 MHz
  Video format	NTSC, PAL, SECAM
  Impedance	BNC 75 Ω, UTP 100 Ω
  Transmission distance	HDTVI 200/200/200/200 m (720p/1080p/4 Mpx/4K), HDCVI 400/200/200/200 m (720p/1080p/4 Mpx/4K) AHD 300/200/200 m (720p/1080p/4 MP), CVBS 300 m
  Power	Passive (not required)
  Dimensions	25 (H) x 102 (W) x 90 (D) mm
  Weight	200 g
