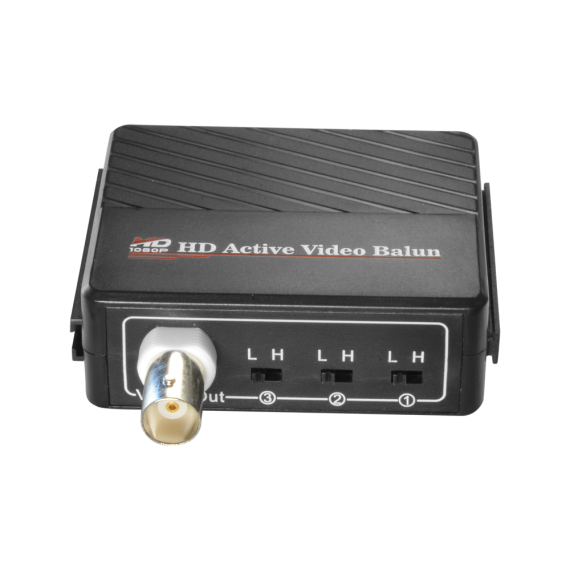

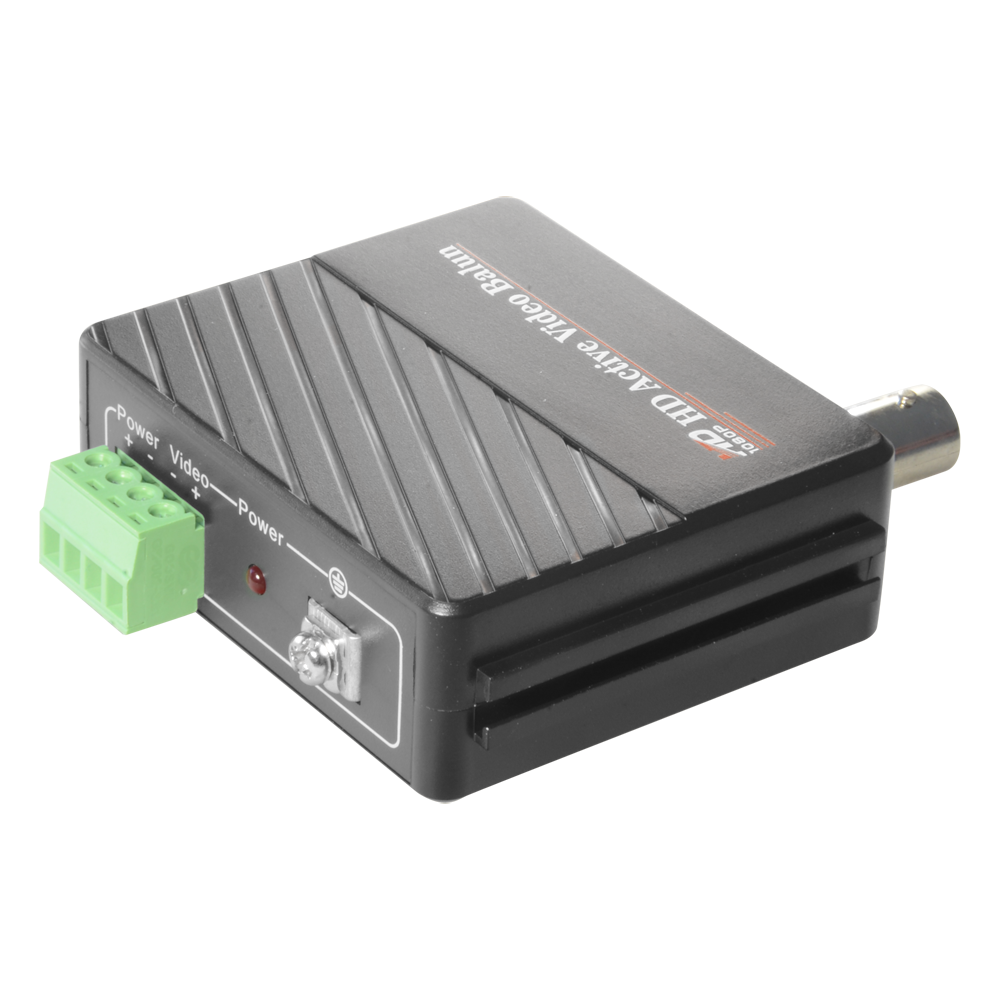

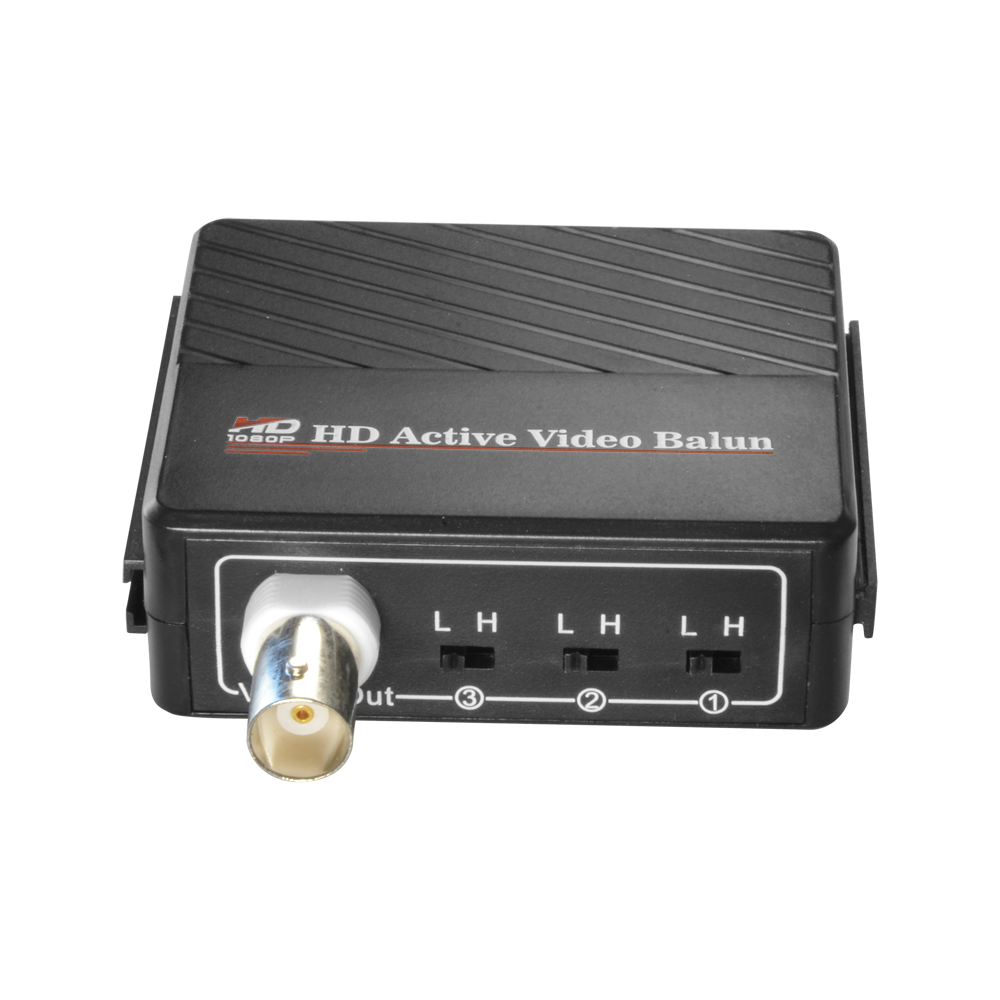

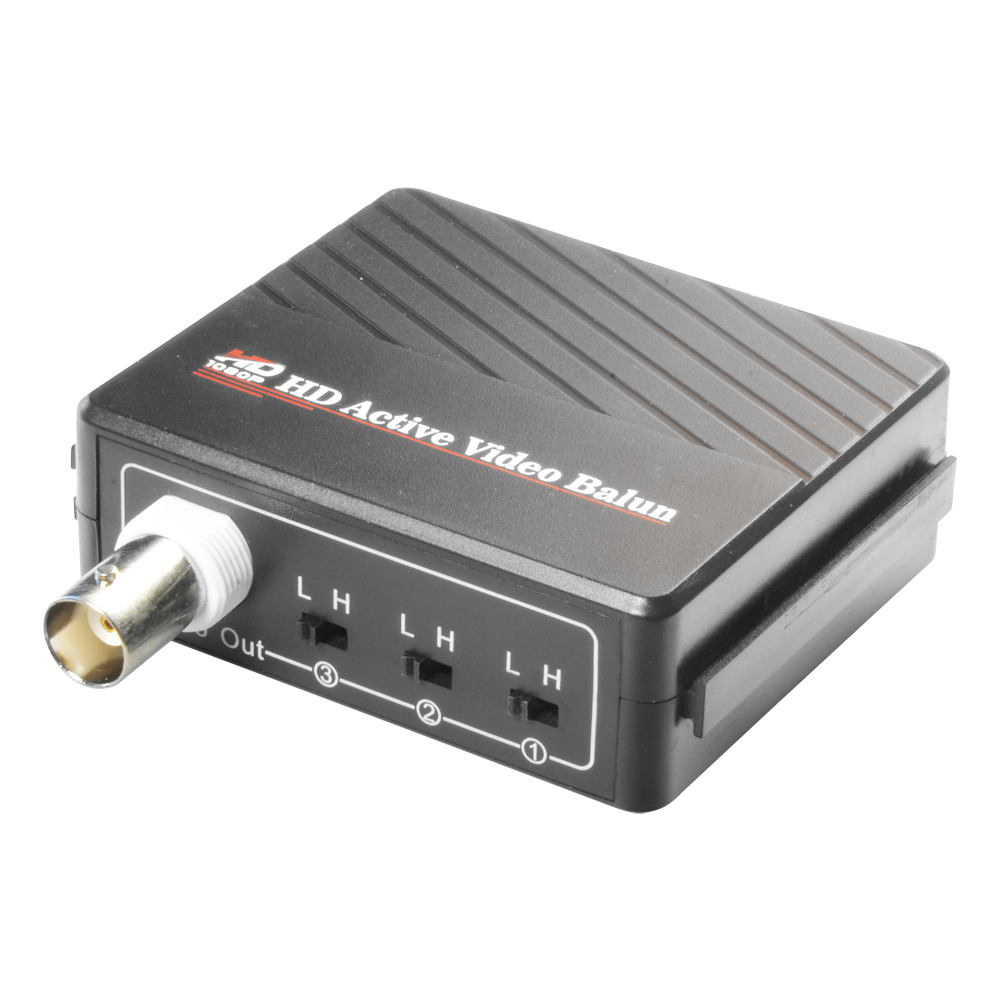

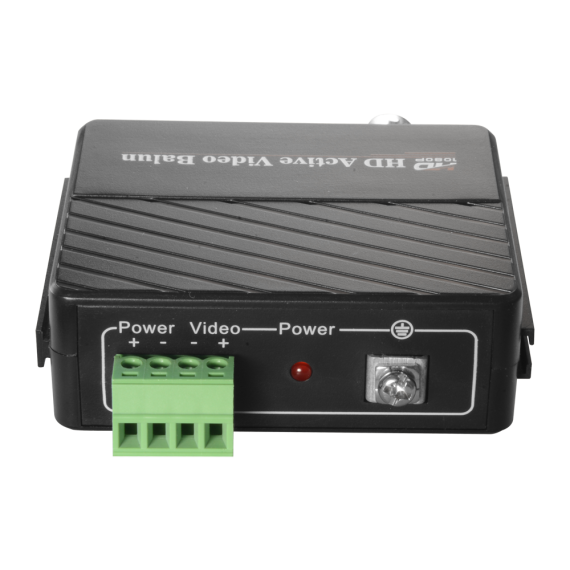

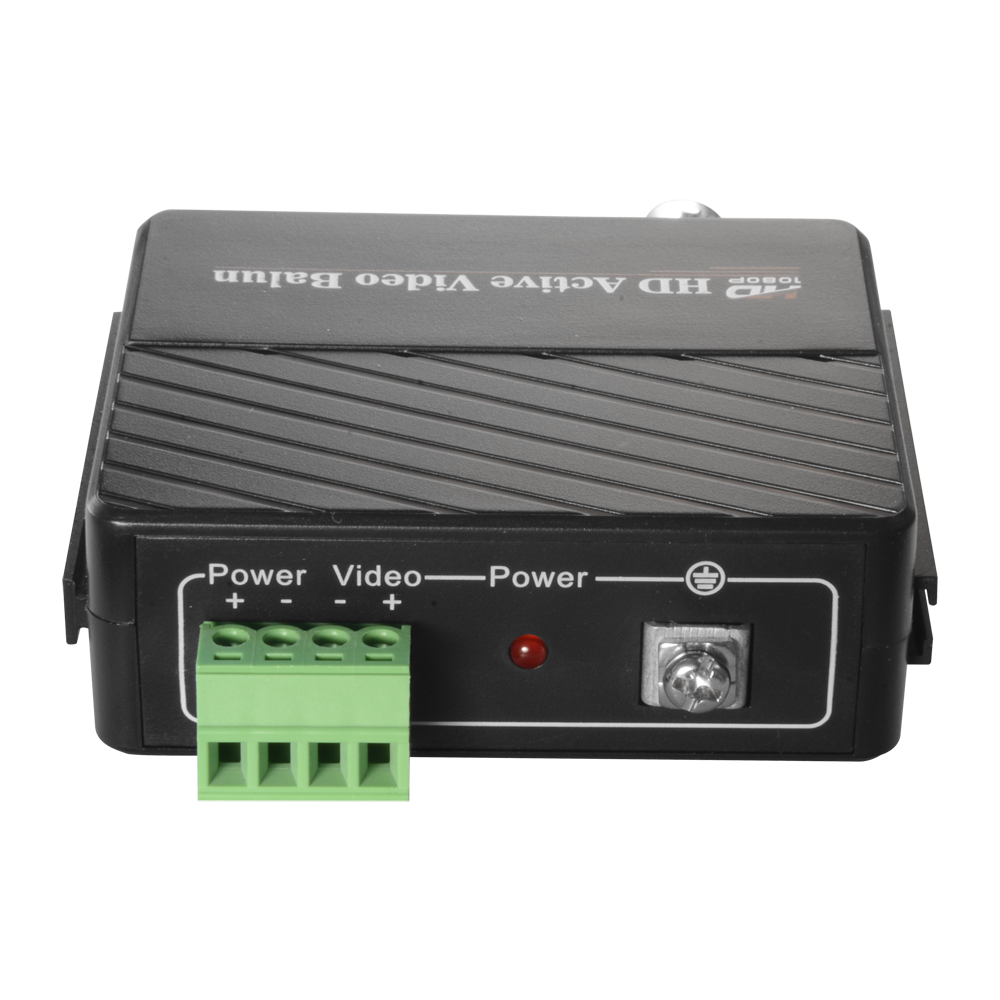

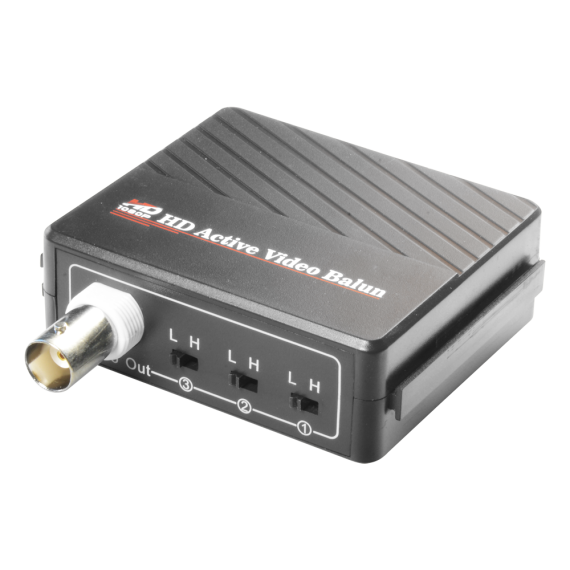

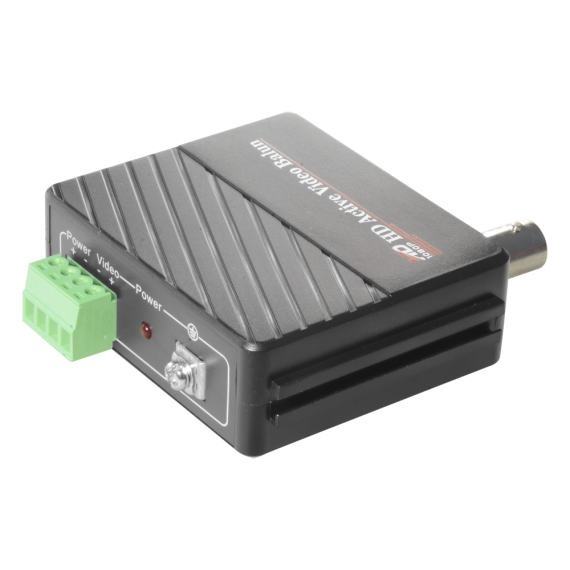

MARCA BLANCA BA615A-RX

Active transceiver - Optimized for HDTVI / HDCVI / AHD - 1 video channel - BNC/UTP 4 pins - Range: 400 ~ 700 m - Receiver / Compatible with BA615A-TX

kr 665.85

Referanse:

BA615A-RX

Merke:

Beskrivelse

Balun (transceiver)
Optimized for HD video: HDTVI / HDCVI / AHD
1 channel
Active
Power 12VVDC
BNC/UTP 4 pins
Video
Maximum range 400 m (720p/1080p HDTVI), 550/470 m (720p/1080p HDCVI) and 700/470 m (720p/1080p AHD)
1 receiver
Compatible with BA615A-TX

Number of channels	1 channel
Power	12VDC / 1A (Passive)
Video Input/Output	BNC (male)
Transmission distance	400 m (720p/1080p HDTVI), 550/470 m (720p/1080p HDCVI) and 700/470 m (720p/1080p AHD)
Twisted pair connector	Connector with 4 pins
Crosstalk	60 dB
Input impedance	75 Ohm
Output Impedance	100 Ohm
Cable category	UTP category 5e/6
