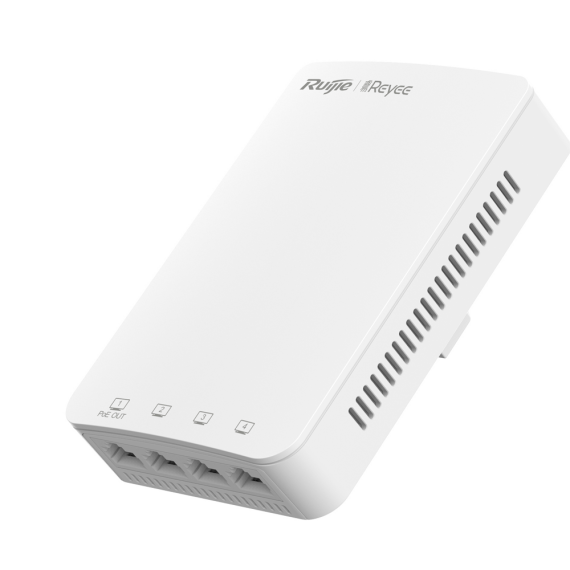

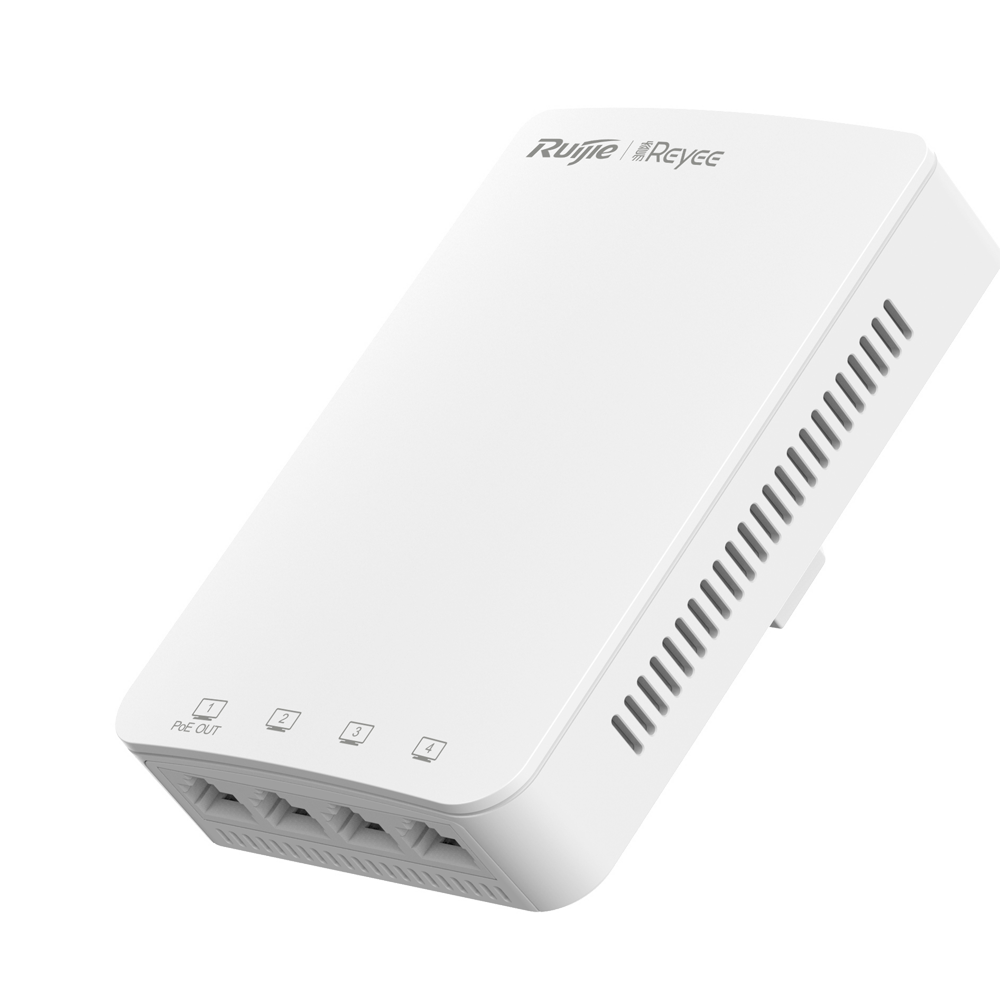

| Brand | Reyee |

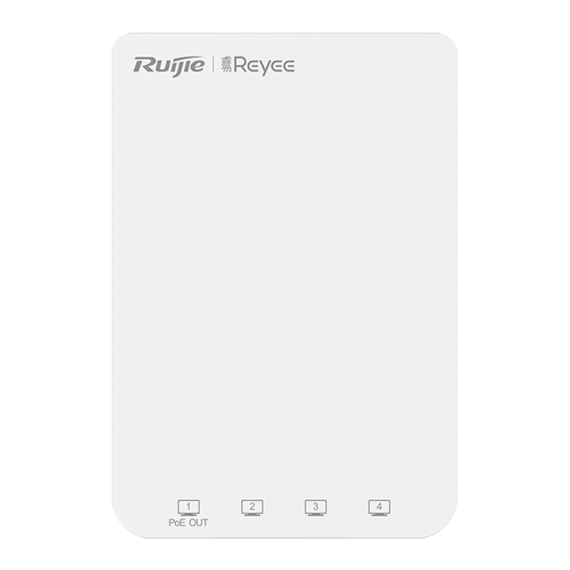

| Ports | 4 RJ45 10/100/1000 Mbps + Rear Uplink 1 RJ45 [%VAR%] Gigabit |
| Wireless standard | WiFi AC (802.11ac) |
| Frequencies | 2.4GHz & 5GHz |
| Performance in 2.4GHz | Up to 400 Mbps |
| Performance in 5GHz | Up to 867 Mbps |
| Maximum power transmission | 20 dB adjustable |
| Maximum sensitivity | -92.5dBm@MCS0 |
| Integrated antenna | 2x2 Internal Omnidirectional MIMO antennas at 2.4 GHz and 5 GHz |
| Operating modes | Wireless access point Routing with basic functions Compatible with Reyee AP Mesh |
| Security | WPA / WPA2 (AES) / WPA-PSK |
| SSIDs | Up to 8 |
| Management | Configuration via web interface or remotely with Ruijie cloud app |

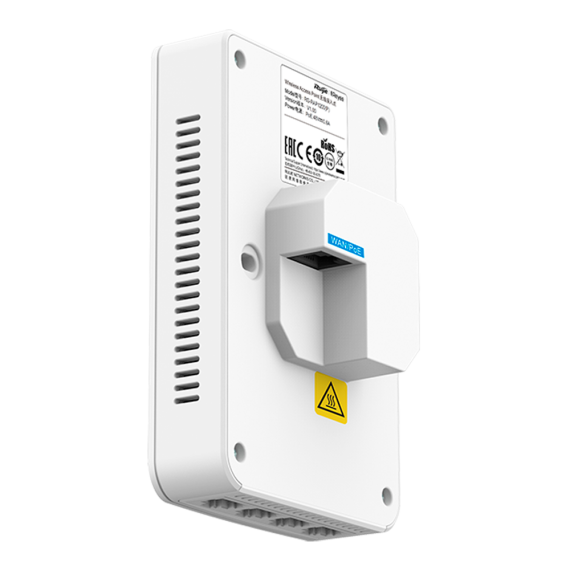

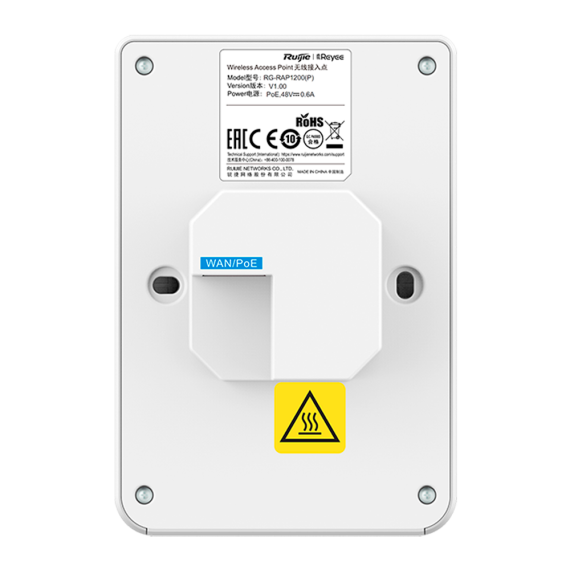

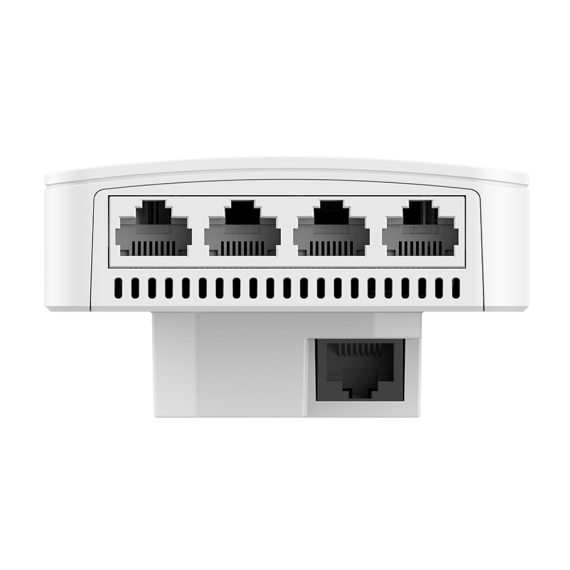

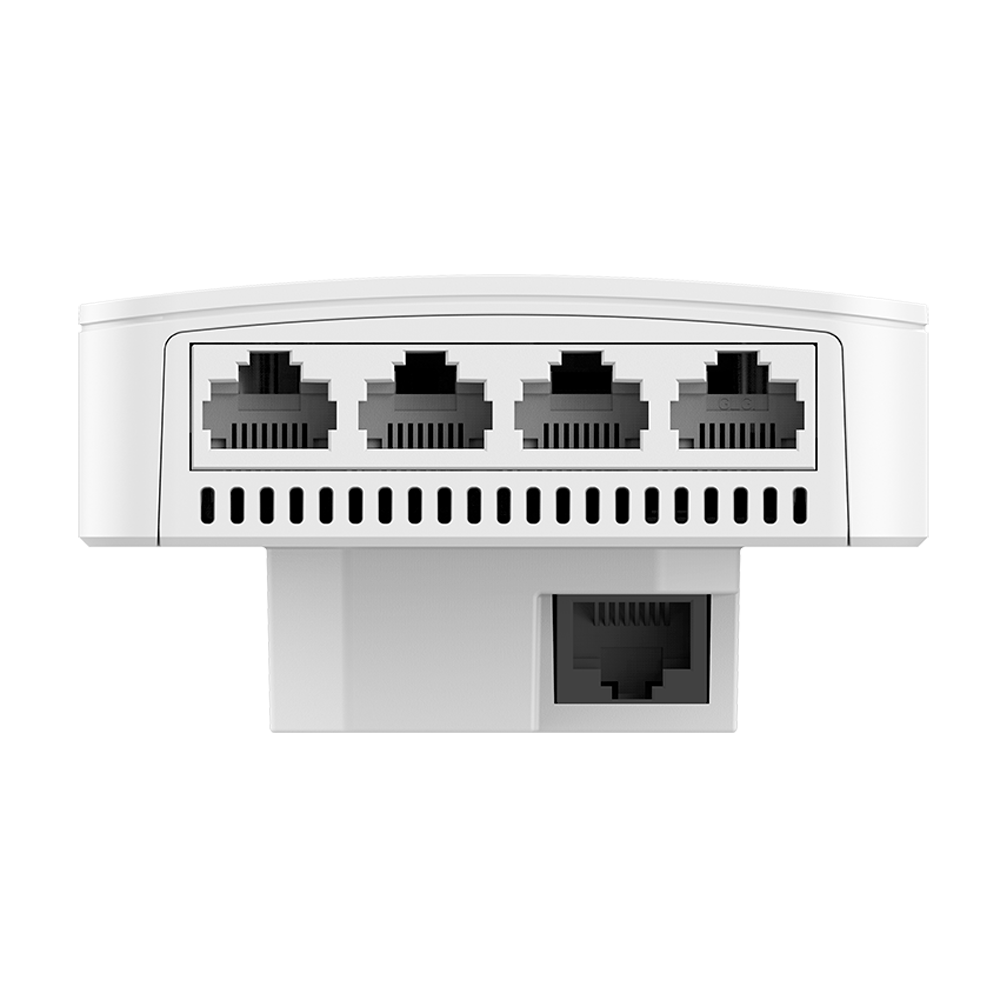

| Downlink Interface | 1 Rear Uplink 1 RJ45 10/100/1000 Mbps PoE In 4 Downlink RJ45 10/100/1000 Mbps (1 with PoE Out) |
| Installation | Mechanism box |
| Power | PoE IEE802.3af 8W / 23,4W if the PoE Out port is used |
| Operating temperature | 0 °C ~ 40 °C |
| Dimensions | 126 x 86 x 50 mm |
| Weight | 240 g |
